1" / 25mm Pipe Extender External - Repair Fitting

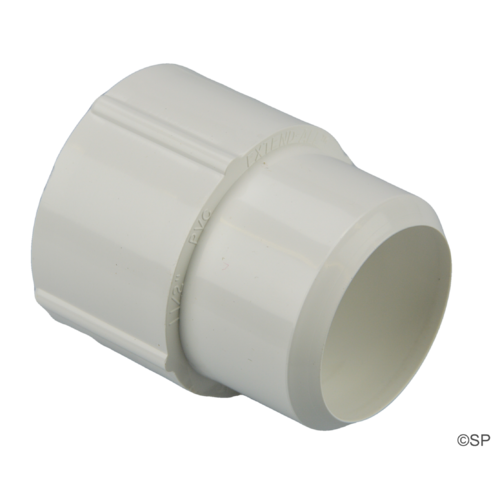

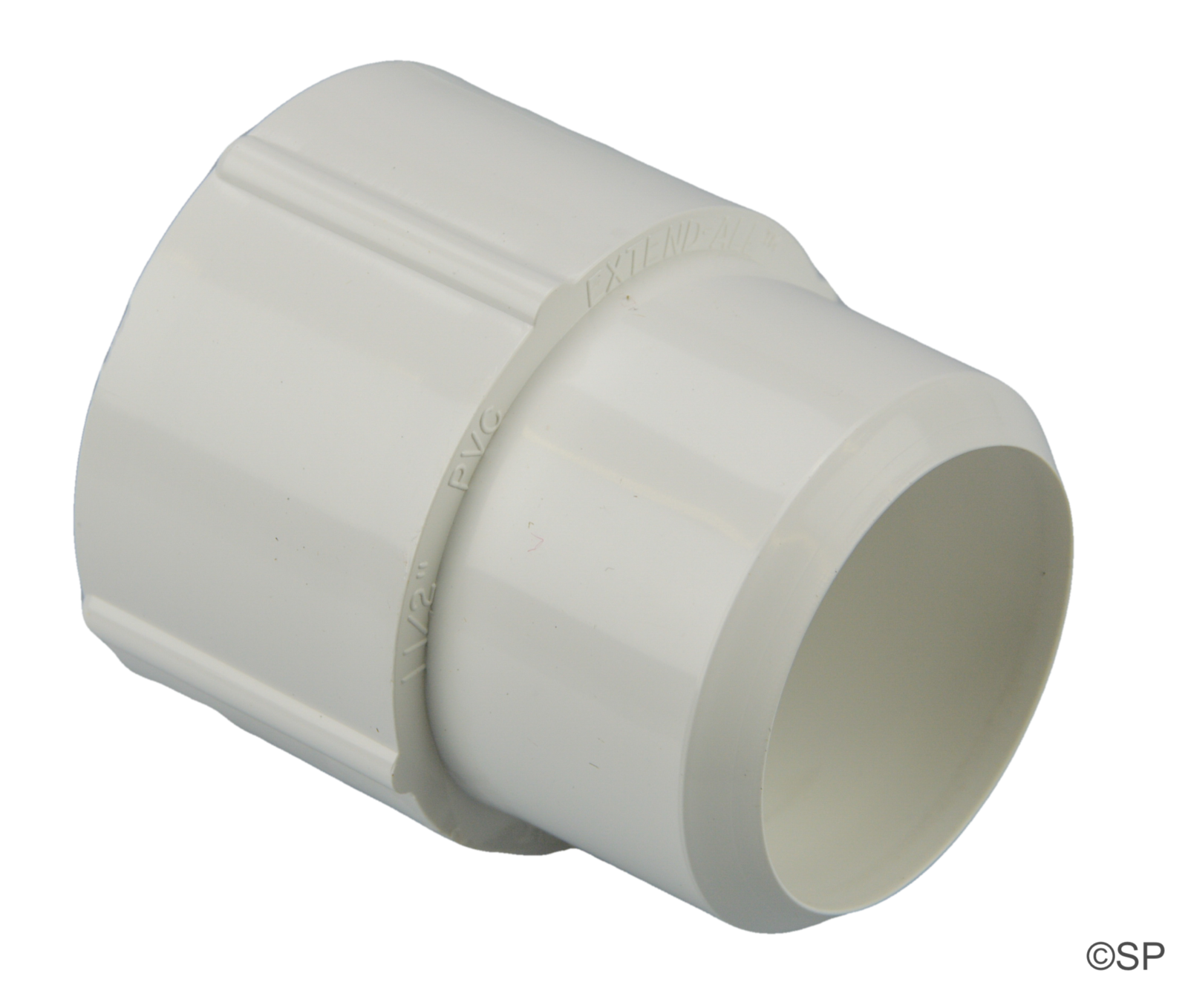

1" / 25mm Pipe Extender External.
Use this repair fitting in order to replace a broken union, elbow, or any other 1" fitting without having to extend the existing pipe after cutting it from the fitting (effectively making the pipe too short).
This pipe extender glues OVER the pipe increasing its length back to the original length so that when its subsequently glued into the replacement fitting, there will be no change to position of plumbing components.
Suits use when any type of 1" / 25mm fitting has been broken or Joint is leaking, including :
Pump or heater unions,
Couplings, elbows or bends
Diverter valves, isolation valves and all other fittings with a 1" / 25mm socket.

Suits all 1" or 25mm pipe classes

Overall length of fitting = 59mm
Socket depth = 27mm
Spigot length = 29mm
3mm gap required.
