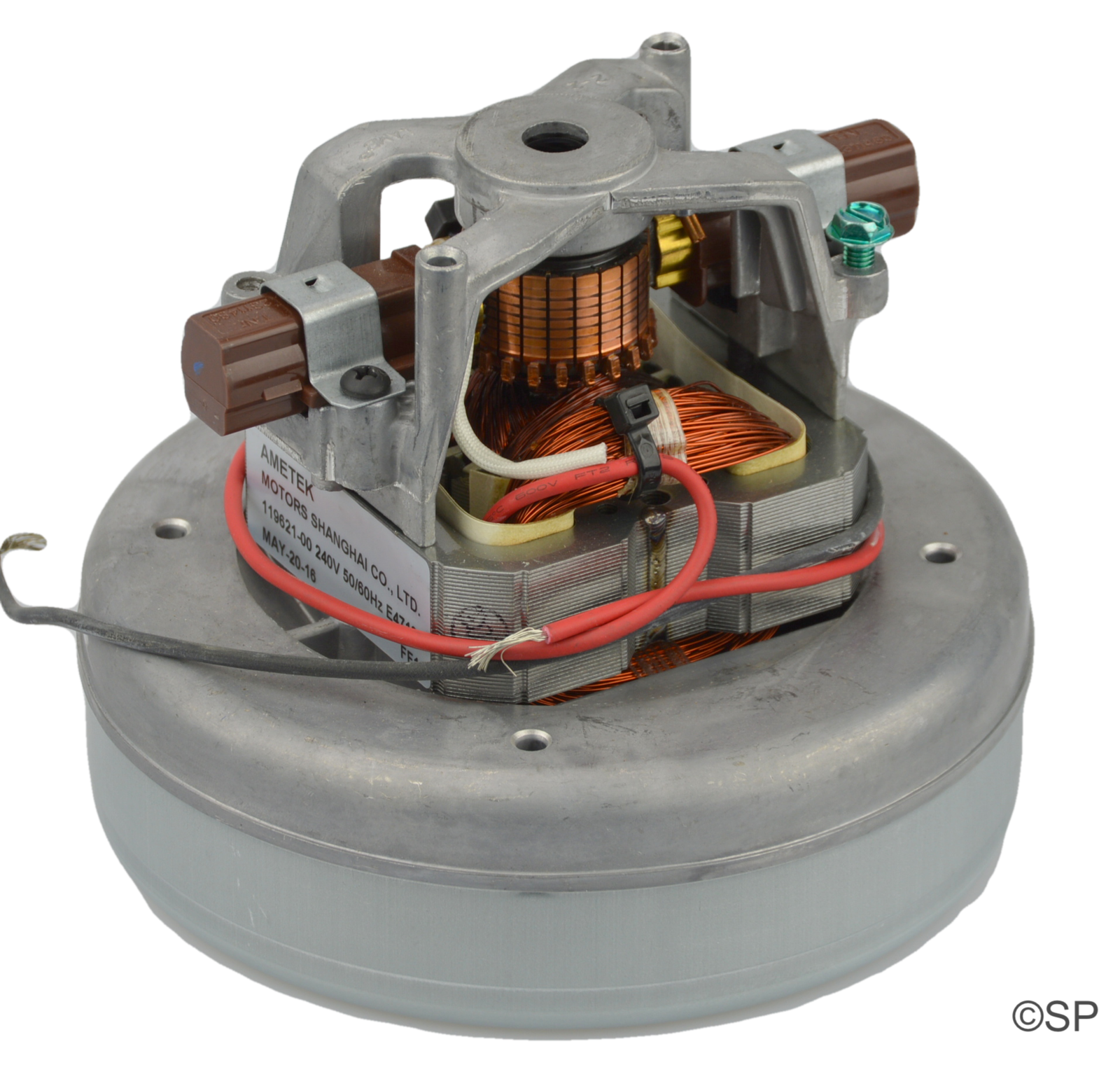

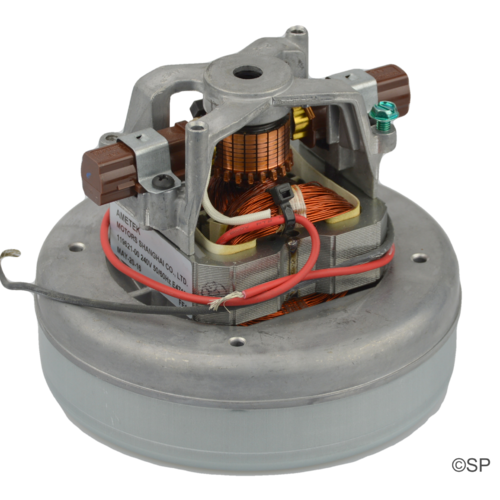

850w 3.8A Ametek Lamb Electric Single Stage Spa Air Blower Motor

13 In Stock

SKU:
ametek119621-00
Brand:
Shipping:
Calculated at checkout

login or register to view pricing

Login/Register

Product Description

Single stage 850w Lamb Ametek Air Blower Motor used on many air blowers rated from 850w-1000w 50/60Hz, 220-240v, 3.8A,
100 CFM / 170 cubic metres/hr open head - approx 80-90 cubic metres/hr at 0.6m head
145mm diameter fan, 45mm overall fan cover height, 113mm overall height including motor
Single stage motors offer higher flow at standard pressure - suited to all portable style spa applications.
This motor is the most widely used size in portable spas at 600mm water depth to the injectors it suits approx 20 x 6mm holes or 14 x 9mm holes
