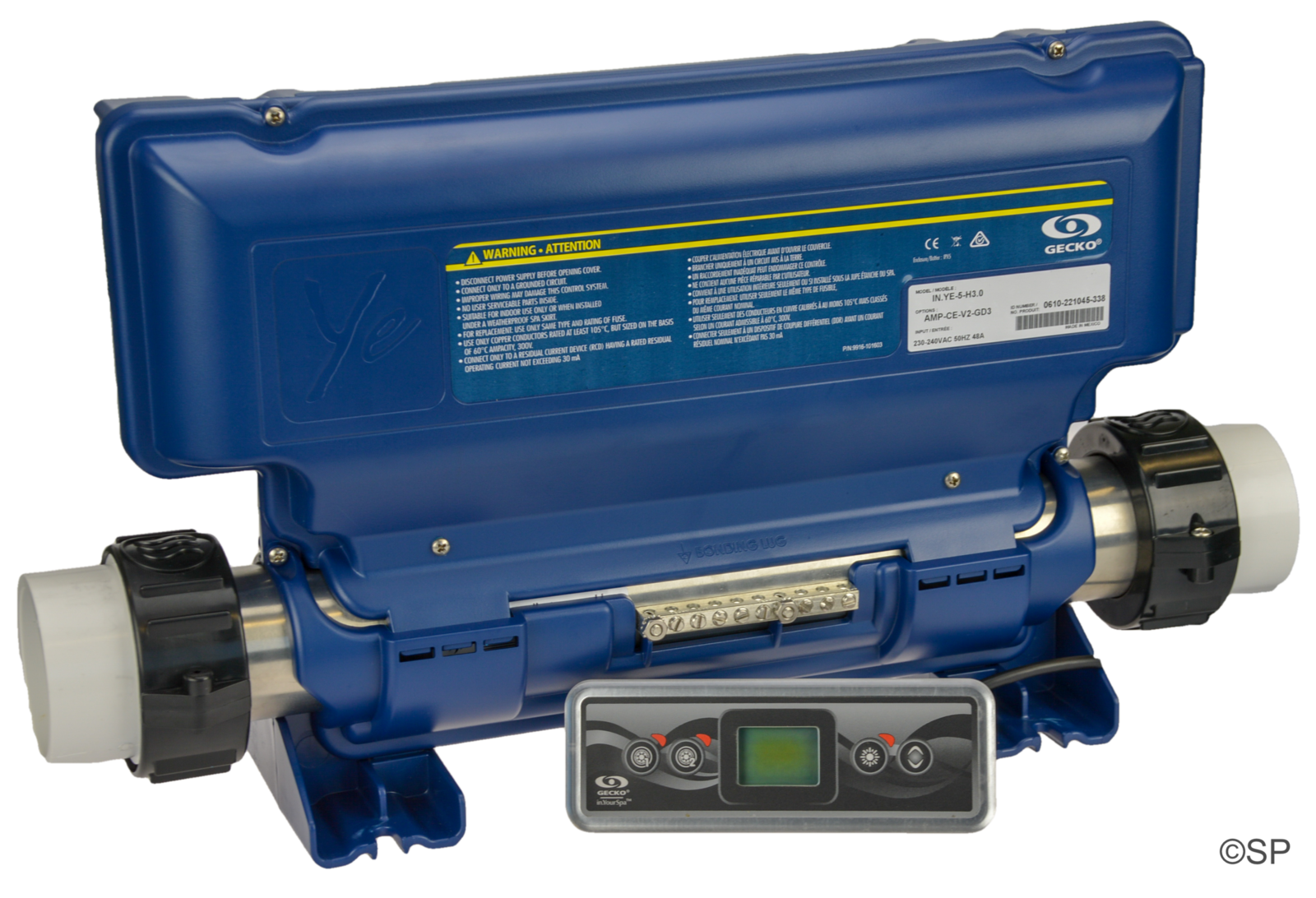

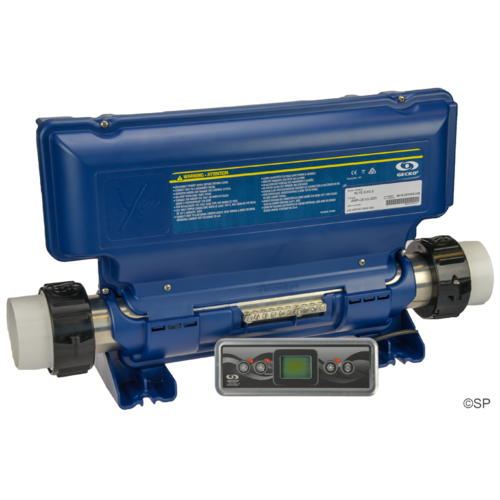

Aeware in.ye-3 spa control system complete with in.k300 touchpad and heater
Aeware's newest controller uses the industry popular AMP plug style connections - making it a perfect replacement for Balboa spa packs without the need to rewire pumps and equipment (for those models being replaced, fitted with AMP cords) or replumbing.
Universal spa control system - 1, or 2 pumps plus circulation pump, blower, ozone and light - many combinations possible - 3.0kw heater
Aeware in.ye-3-H*.0 by Gecko Electronics
3 outputs - can accomodate a combination of 3 of the following - 2 pumps, blower, circ pump, ozone, light, aux/audio
Output 1 = Pump, output 2 = Pump or Blower, output 3 = Blower or Circulation Pump/Ozone, output 4 = 230v supply for Audio system, etc. or 24hr circ pump
In-line heater 15" long x 2" stainless steel tube, complete with unions.
Utilises AMP cables to connect to equipment - Pump 1, Pump 2, Blower, Ozone, Circ Pump NOT INCLUDED.
All inputs and outputs are plugged directly into the sockets to the side of the circuit board. Pumps etc can also be direct wired to the circuit board relays and terminals with female spade connectors.
Incoming power supply is from the left side only through a 32mm hole (32mm gland/conduit fitting and appropriate cable set up required to maintain box seal against entry of vermin, ants, etc.)
230v, 50Hz, 10A - 40A max single phase, or
415v, 50Hz, 20A max two phase.
420mm wide x 270mm high x 115mm deep.
** Please note - overmoulded AMP plugs used with Spaquip/Davey and SpaNet controllers CANNOT be used with Aeware in.y series spa packs as there is insufficent space that is needed with the overmoulding. In those cases the plugs/cords need to be changed to the single insulated USA style AMP plug/cord or 6.3mm spade terminated cables**
