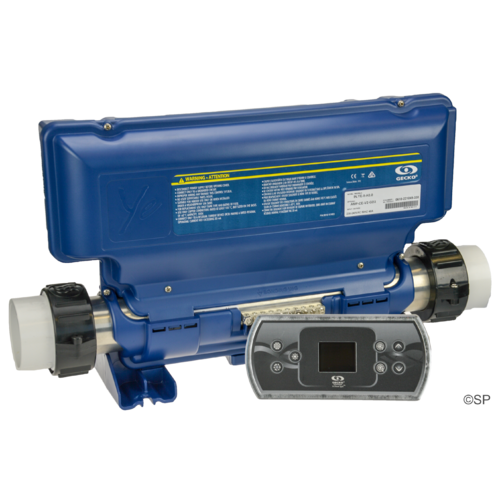

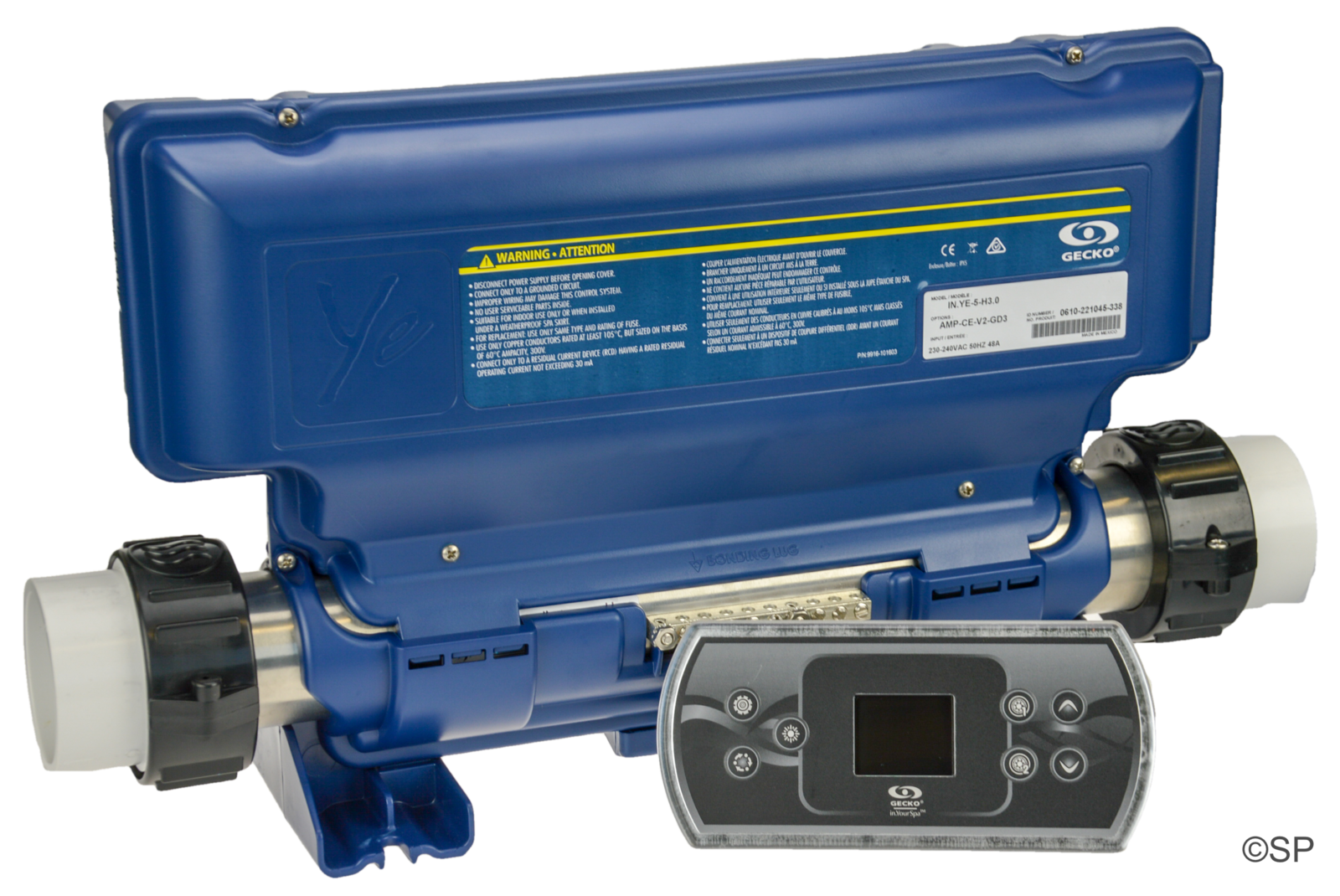

Aeware in.ye-5 Spa Control System Complete with in.k500 touchpad & 3.0kw heater.

4 In Stock

SKU:
aewarebdlye5k500ce
Shipping:
Calculated at checkout

login or register to view pricing

Login/Register

Product Description

Aeware in.ye-5 spa pack -

Gecko Aeware's newest controller built on the same platform as the in.xe series controllers, however this model uses the industry popular AMP plug style connections - making it a perfect replacement for Balboa spa packs without the need to rewire pumps and equipment (for those models being replaced, fitted with AMP cords) or replumbing.

in.k450 touchpads may require hole size modification and are suitable to replace VL401, and digital standard/deluxe style touchpads. (see the other versions of these kits for alternate touchpads better suited to replace Balboa VL200 and ML700 touchpads)
Universal spa control system - 1, 2 or 3* pumps plus circulation pump, blower, ozone and light - many combinations possible - 3.0kw heater Aeware in.ye-5-H3.0 by Gecko Electronics 5 outputs - can accomodate a combination of 5 of the following - 3 pumps, blower, circ pump, ozone, light, aux/audio Output 1 = Pump, output 2 = Pump or Blower, output 3 = Blower or Circulation Pump, output 4 = Ozone, output 5 = 230v supply for Audio system, etc. or 24hr circ pump 3.0kw in-line heater 15" long x 2" stainless steel tube, complete with unions. Utilises AMP cables to connect to equipment - Pump 1, Pump 2, Blower, Ozone, Circ Pump NOT INCLUDED.
All inputs and outputs are plugged directly into the sockets to the side of the circuit board. Pumps etc can also be direct wired to the circuit board relays and terminals with female spade connectors.
Incoming power supply is from the left side only through a 32mm hole (32mm gland/conduit fitting and appropriate cable set up required to maintain box seal against entry of vermin, ants, etc.)
in.k500 topside INCLUDED.
230v, 50Hz, 15A - 40A max single phase, or 415v, 50Hz, 20A max two phase. 415v, 50Hz, 16A max three phase.
420mm wide x 270mm high x 115mm deep.
Touchpad 183mm x 85mm, hole required 160mm x 63mm
** Please note - overmoulded AMP plugs used with Spaquip/Davey and SpaNet controllers CANNOT be used with Aeware in.y series spa packs as there is insufficent space that is needed with the overmoulding. In those cases the plugs/cords need to be changed to the single insulated USA style AMP plug/cord or 6.3mm spade terminated cables**
* When used with 3 jet pumps and a circulation pump, all pumps must be single speed. Maximum pump current draw for Pump 1, Ozone, Circ pump and direct socket combined is 15A, Pump 2 & 3/blower combined is 20A Maximum current draw of any individual pump is 15A
