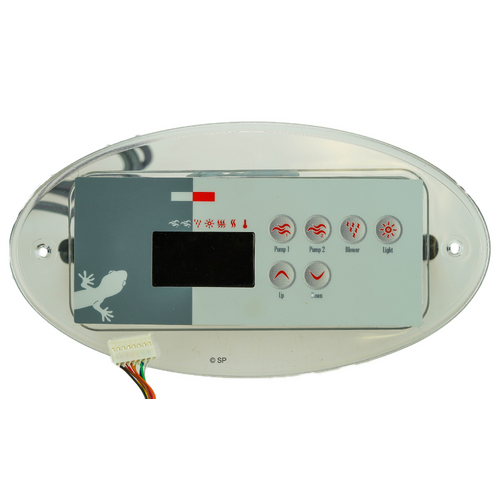

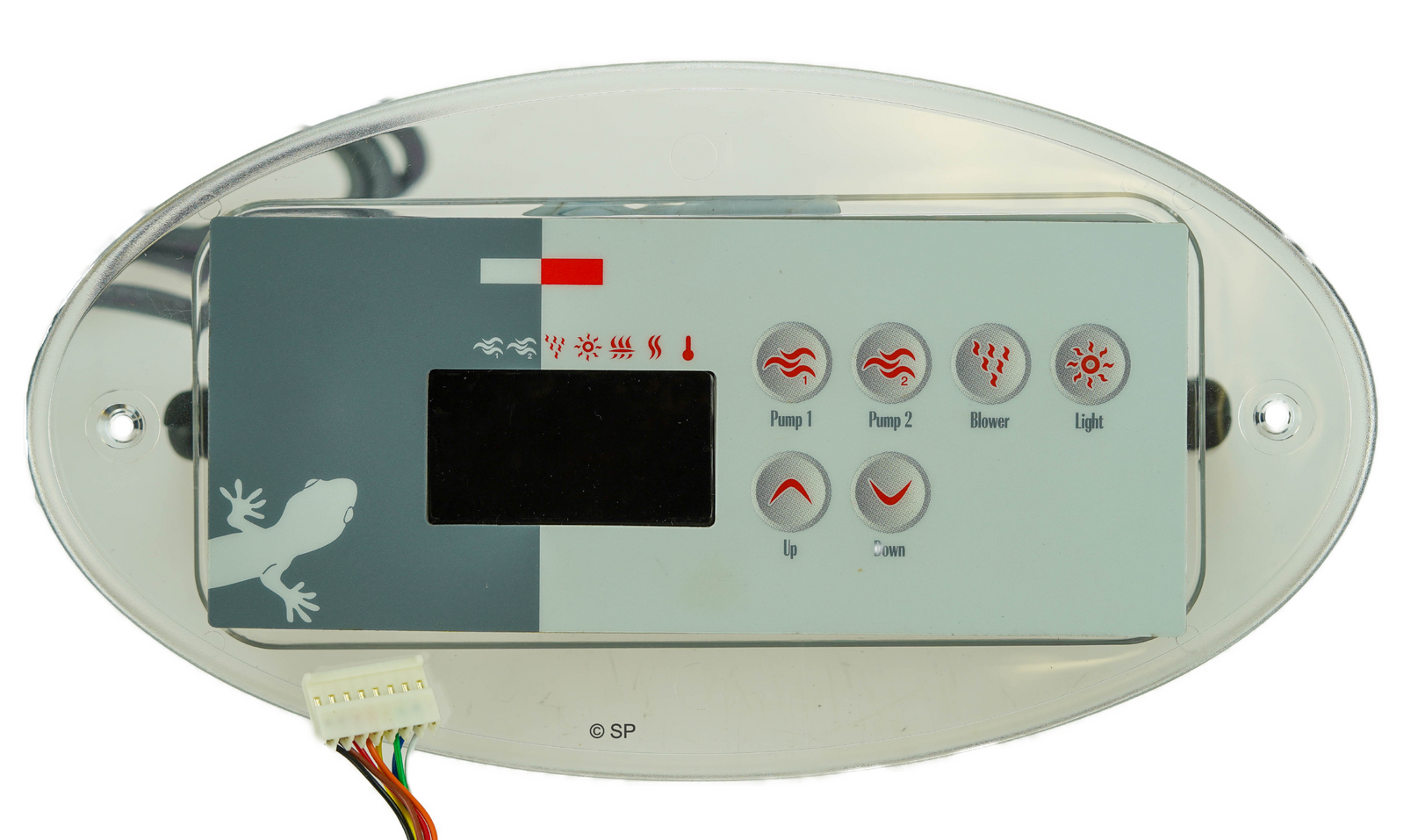

Gecko - Hydroquip - Pentair TSC-35 / K-35 Touchpad with Oval shaped Placard

SPECIAL CLEARANCE PRICE
Gecko TSC-35 and Hydroquip K-35 or Eco-3 (and some also marked K-16) 6 button touchpad - oval shaped - used on Australian Maax Spas, and other USA imports such as Southwest & Sierra Spas -

Supplied with standard rectangular overlay decal ONLY - we do not have original crescent or oval shaped decals available.

THIS IS A SOLUTION TO ALL DISCONTINUED 6 BUTTON GECKO / HYDROQUIP TOUCHPADS - Alternatively contact us to discuss the best suited replacement complete control system.

Suitable also to retrofit the standard rectangular K-35 Eco-3 6 button touchpad if space permits to accomodate the wider/deeper oval shaped placard.

The hole cut out below the oval or crescent shaped version is slightly larger than the hole for the rectangular version although the rectangular one will generally cover a touchpad hole from these oval shaped touchpads.
K-16, 3-00-7191 touchpad. (This is not the same as or compatible with the K-16 8 button topside used on USA made Dynasty Spas or Hawkeye Spas.)

Dimensions - 230mm wide x 122mm deep (including oval shaped placard).
Hole required - 172mm wide x 75mm deep. A smear of silicon is recommended to seal the touchpad to the placard to eliminate water seeping below.

This is a special version of the generic rectangular touchpad, with no outer lip/bezel, and oval shaped placard with 'ill fitting' rectangular decal.
