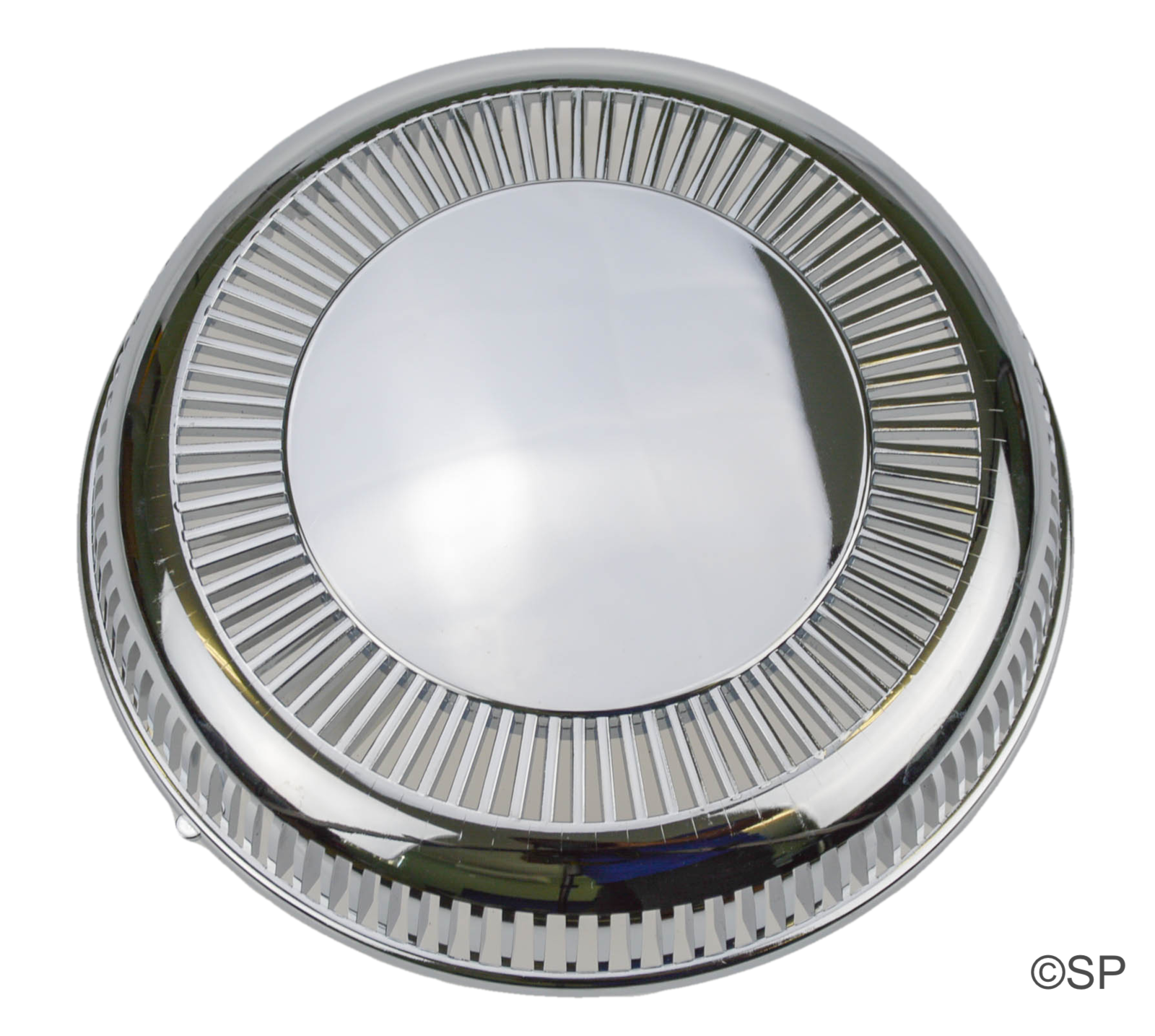

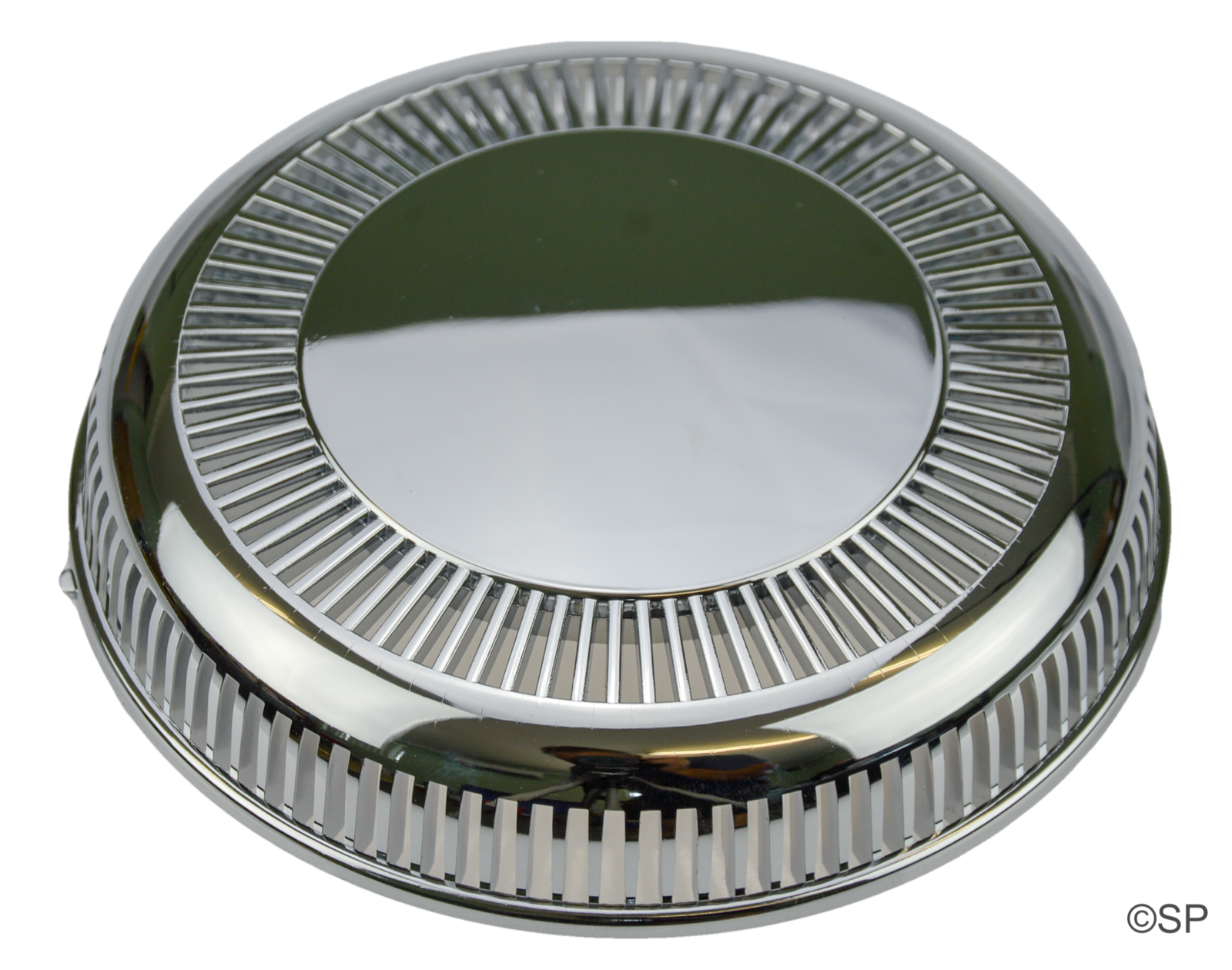

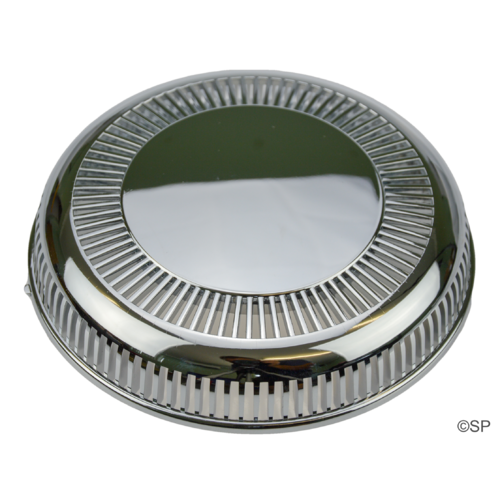

Markon Suction Cover - 2 Vane - Chrome - Suits Stylus & others

23 In Stock

SKU:
mksc0103
Brand:
Shipping:
Calculated at checkout

login or register to view pricing

Login/Register

Product Description

Replaces the original 3 vane version used by Stylus.

To remove:

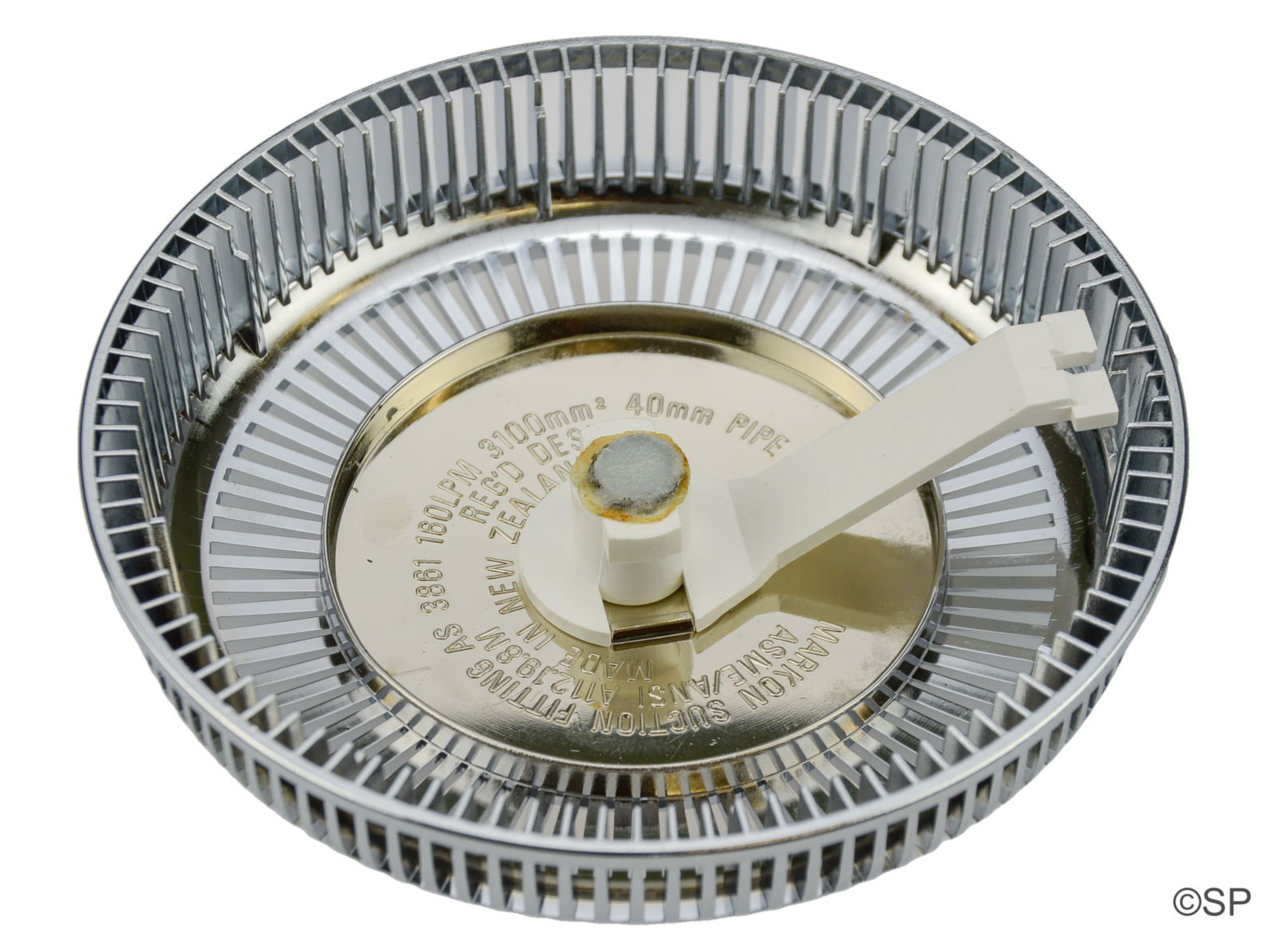

Locate the slightly raised bump on the outer lip of the suction cover at the base against the bath. This is the position of the locking arm/latch. See pics for this bump and the locking arm.
Use a skewer or similar to lift the spring loaded latch away from the bath through one of the side slots.
Once lifted, simultaneously twist the cover anti-clockwise 90 degrees to release the cover.

Chrome is a coating applied through electrolysis to a base material such as brass or plastic.
These parts are chromed plastic
