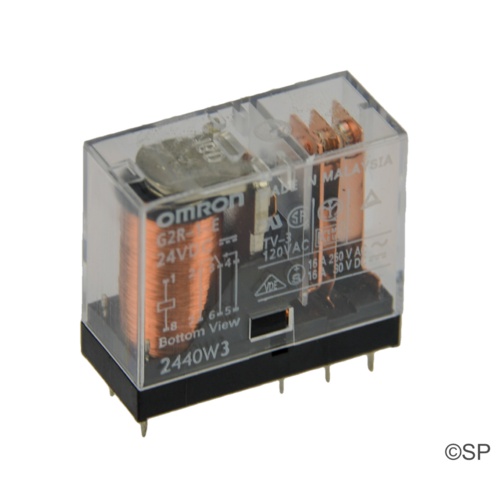

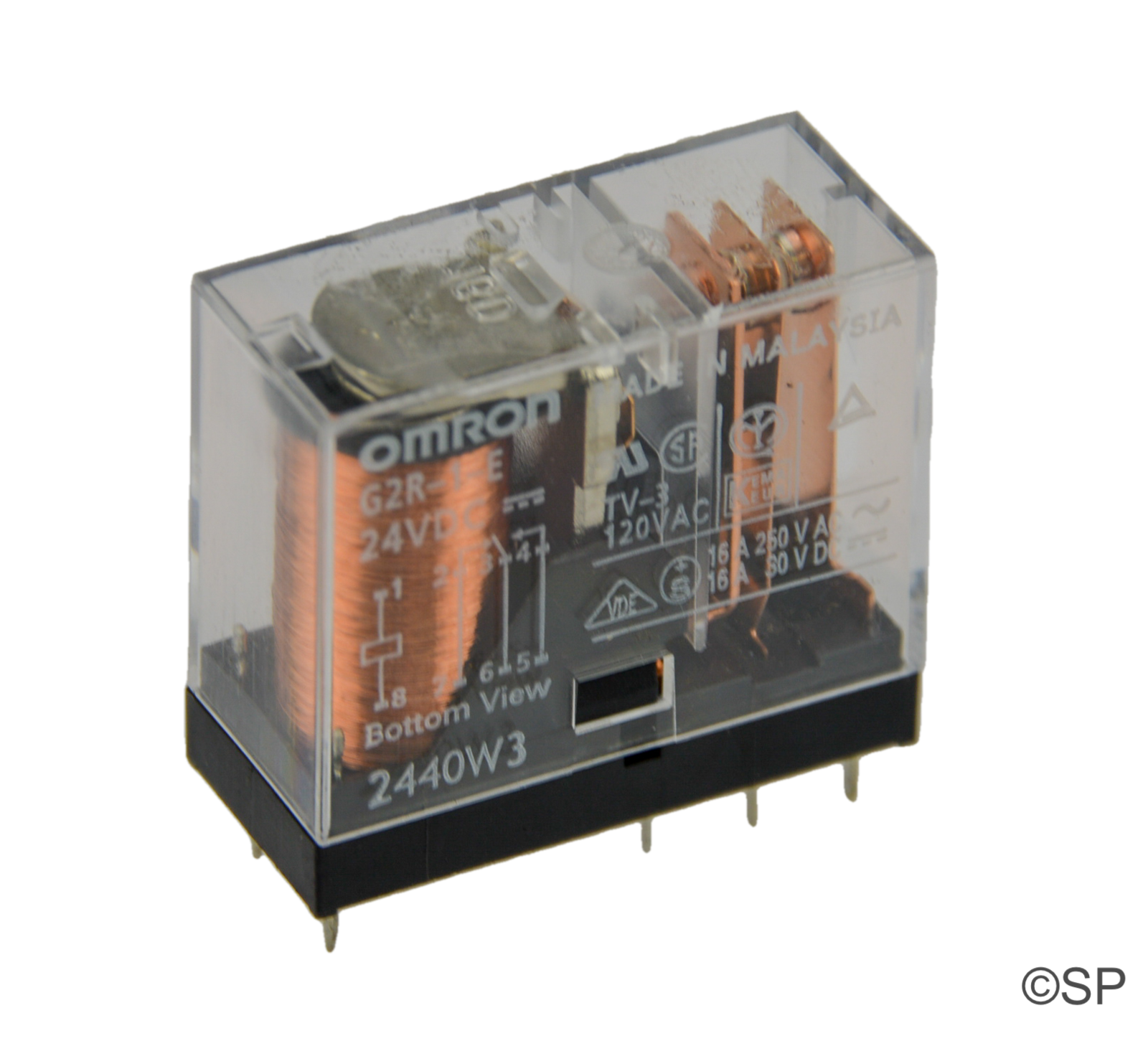

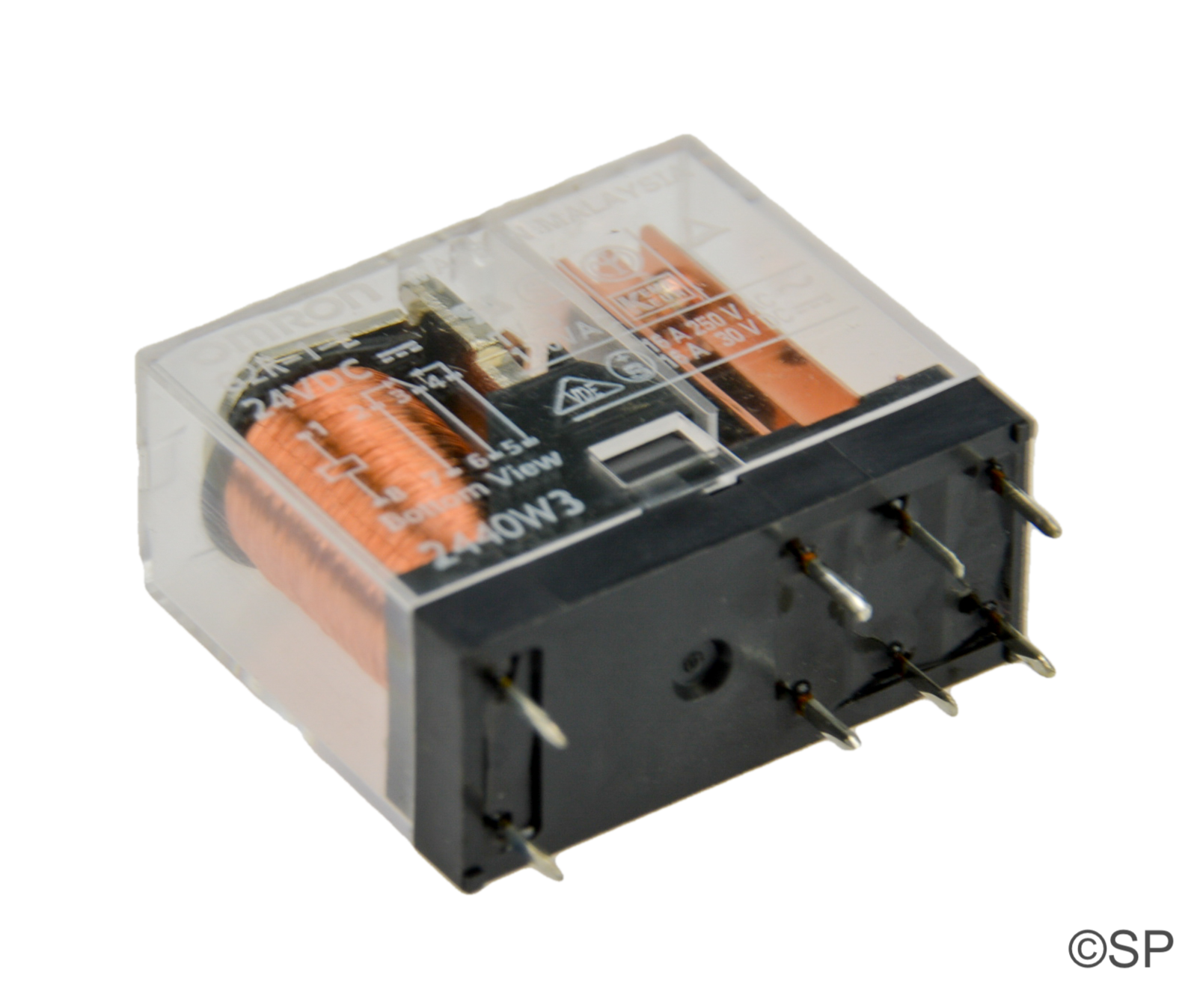

Omron G2R-1A-E PCB Mounted Relay 16A, 240V, 24V DC Coil

Two Pole, Single Throw 16A rated relay with 24v DC coil. Used on Printed Circuit Boards made by Gecko Electronics, Hydroquip and others. Ensure coil voltage is correct when ordering. Other voltages and AC or DC coils available. 28.5mm L x 12.5mm W x 25mm H. Pins spaced 7.5mm apart (Width), 5mm apart (Length), 20mm from coil pins to closest contact pins. The NC (normally closed) terminals can be cut off for most applications on spa circuit boards.
