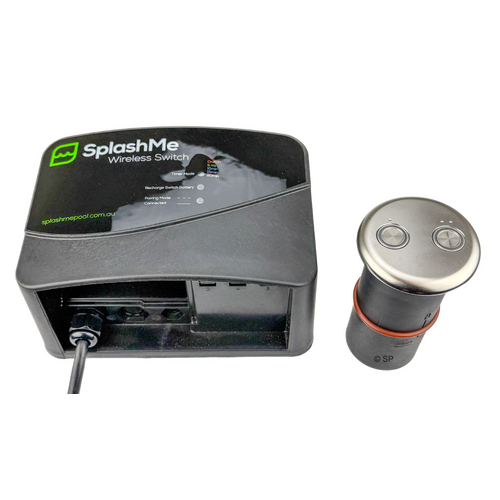

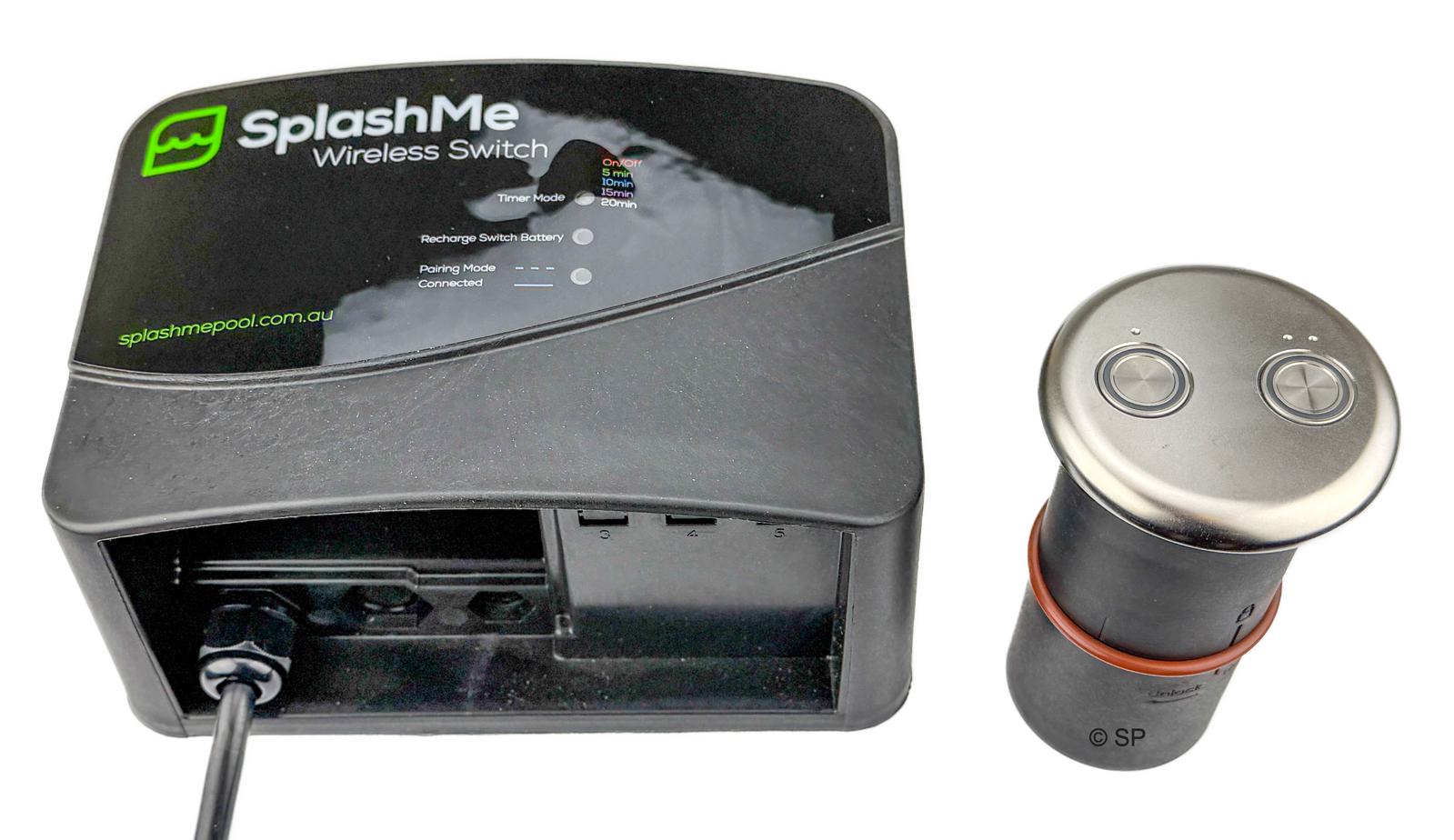

SplashMe Remote Control Wireless Auto Off Timer with rechargeable Stainless Steel electronic 2 button pool/spaside touchpad - 10A

LED illuminates around buttons when turned on, providing positive feedback when button is pressed.

Electronic airswitch alternative for 1-2 outputs

Can be used on in-ground or above ground pools or spas, installed directly into the ground/pavers etc, or acrylic shell.
Sealed unit - waterproof

Touchpad Dimensions
72mm diameter
128mm overall length
53mm hole required or slip fit into 50mm class 9 pressure pipe or the supplied niche

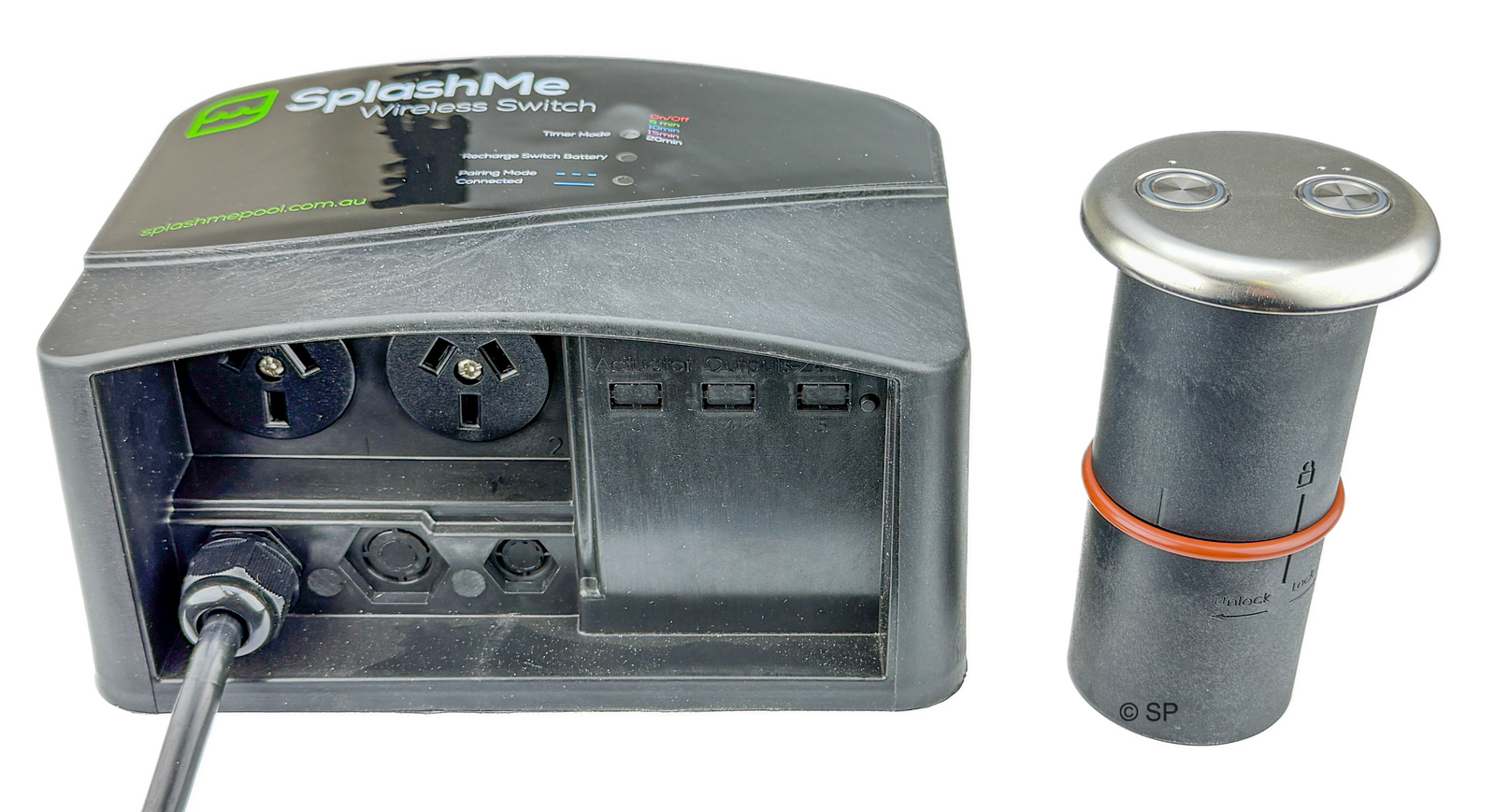

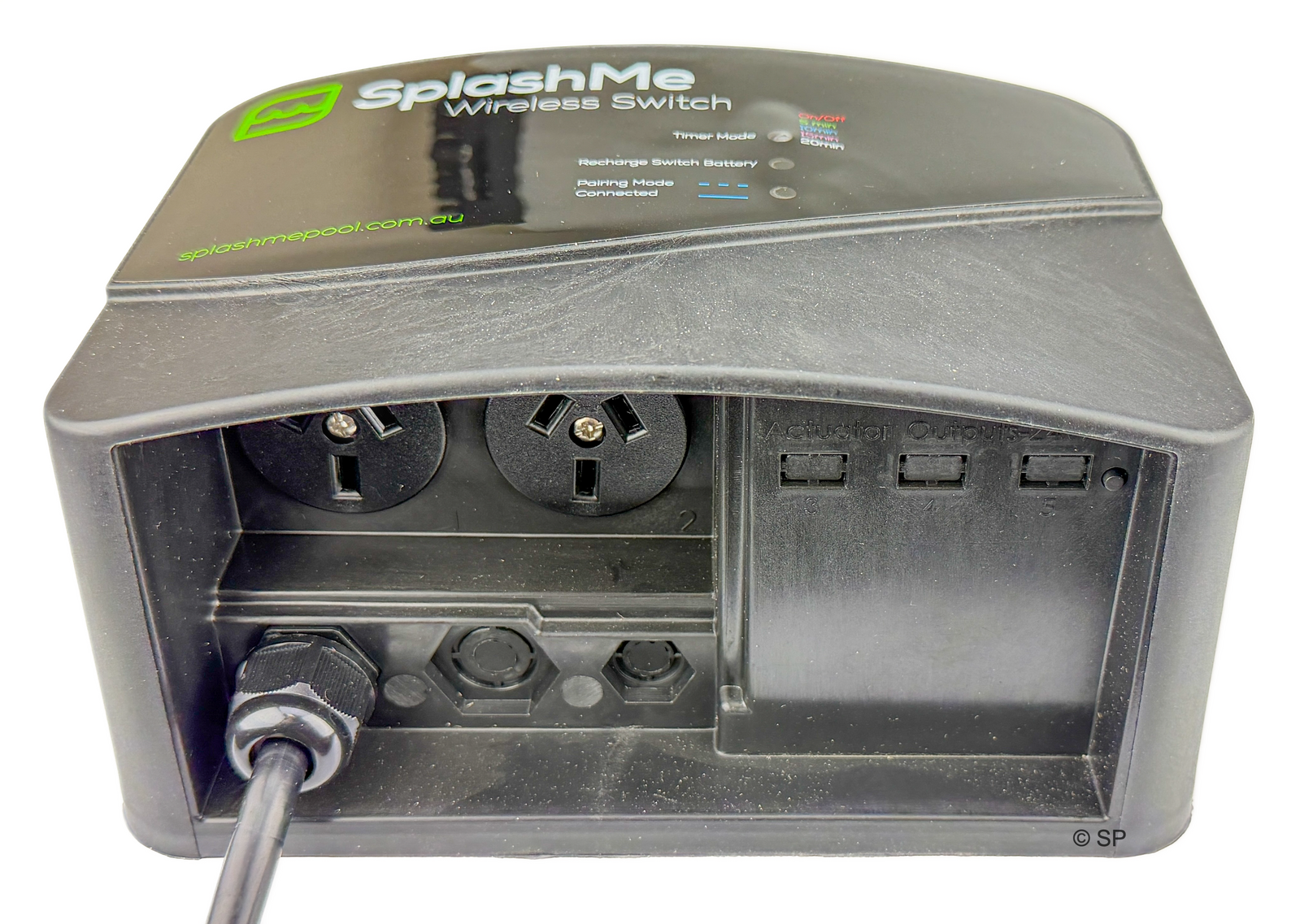

SplashMe wireless switch box with time off delay function.

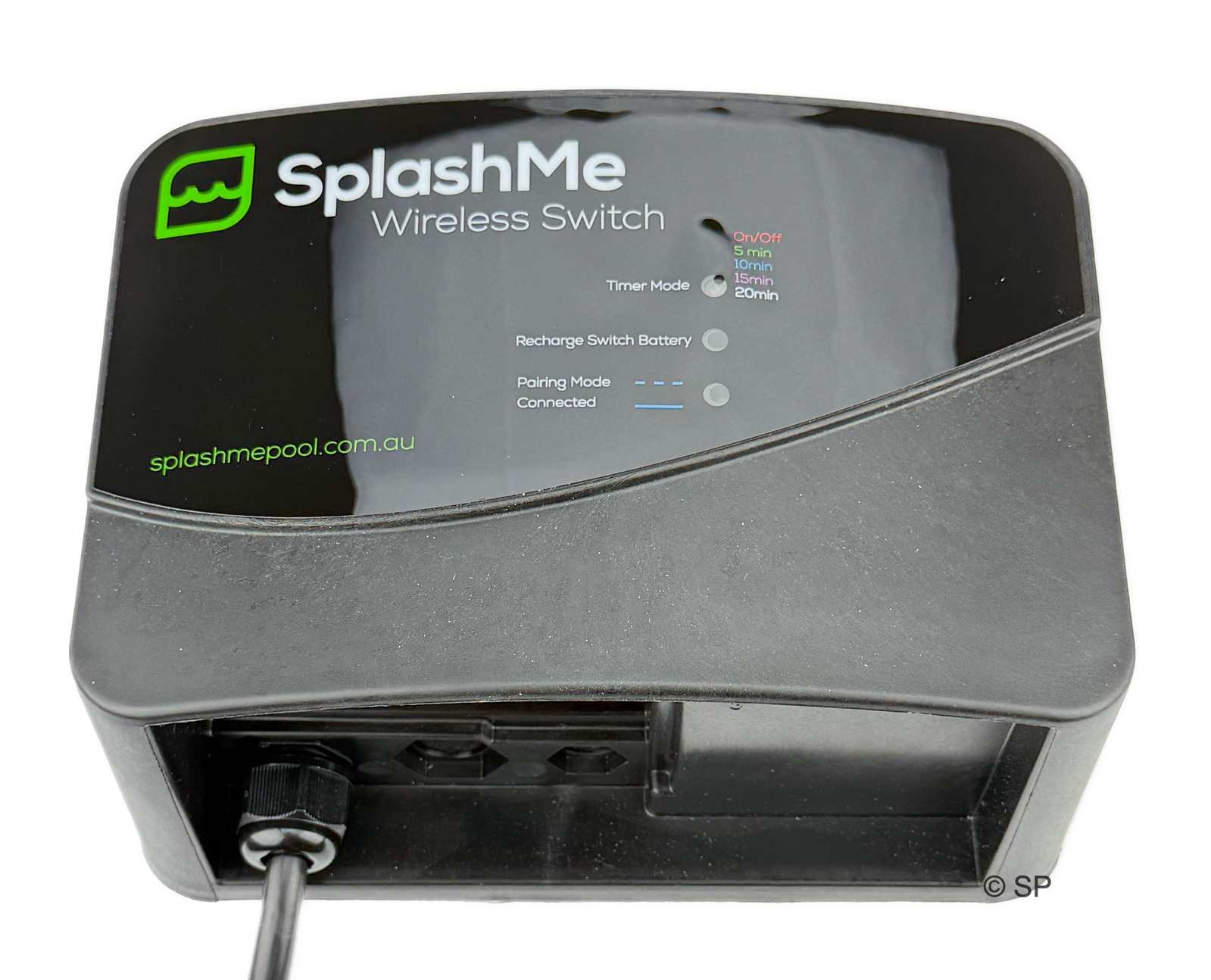

Select the delay off time required - set to On/Off, 5min, 10min, 15min, or 20min.
NB - the timer setting selected applies to both outlets - if you desire 10min for one output and 20 min for an alternate output, you will require 2 separate SplashMe Switch boxes/pool-spaside buttons.

Recommended time off delays:
Air blowers - 10 min
Water pumps 20 min

10A power supply, 2 x 10A outlets - individual load must not exceed 10A, combined load must not exceed 10A


Key Features

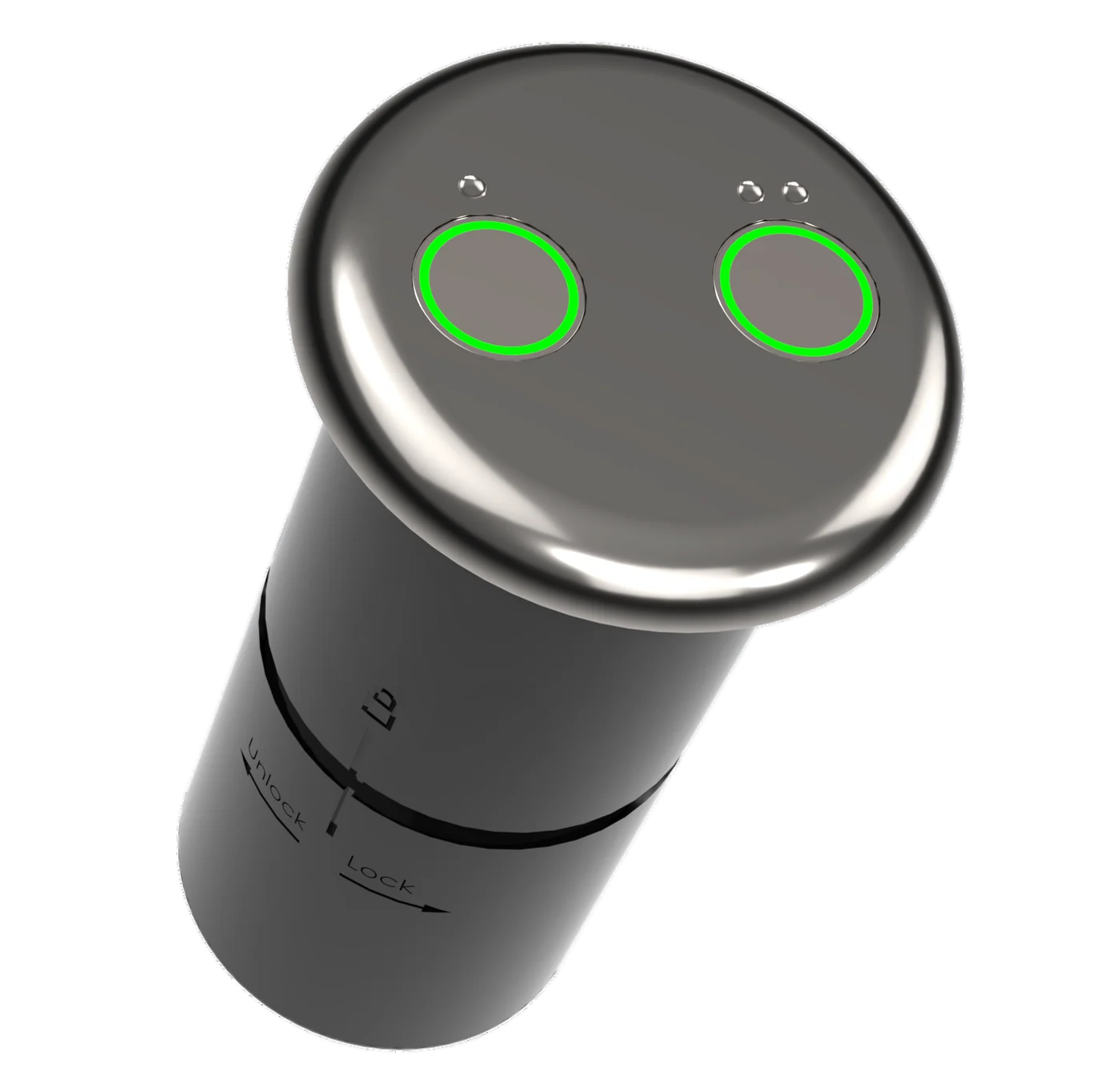

• Touch-sensitive piezo buttons with no moving parts
• Programmable timer functions
• On/off or timed operation per button
• Wireless communication
• Rechargeable battery operation
• Flush-mount niche installation
• Premium metallic finish
• Designed for poolside and outdoor use

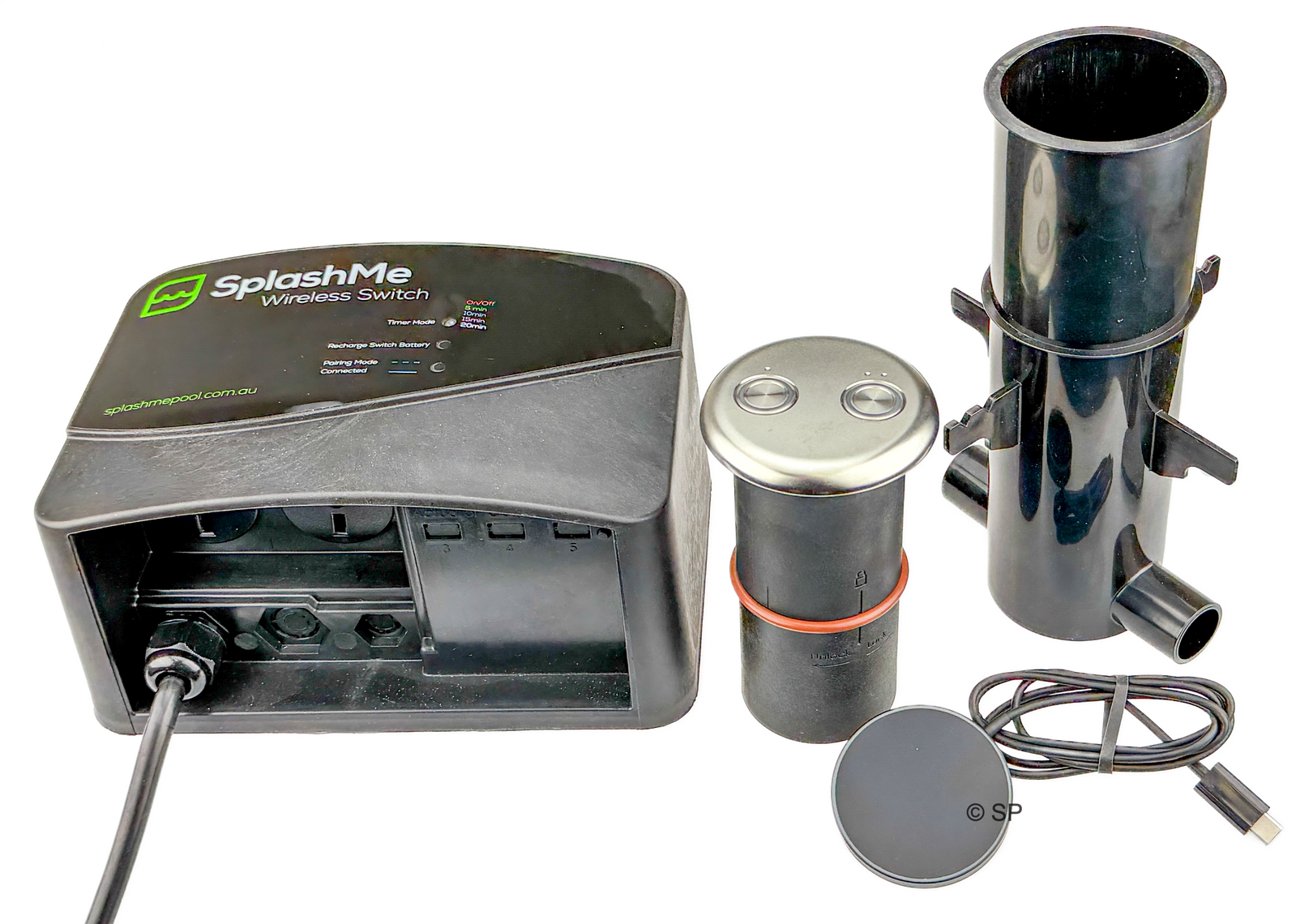

• In the Box

• Switch (2 button)
• Battery - wireless rechargeable
• USB-C Charging pad
• Mounting niche

  Connectivity & Access

  The SplashMe Poolside Switch communicates long range wirelessly and can operate as a standalone control solution or as part of the complete SplashMe ecosystem.



• Installation & Setup

  The SplashMe Poolside Switch is designed for permanent flush-mounted installation in pool surrounds, paving or concrete surfaces.

• For new pool builds, the supplied niche is positioned before the concrete pour, creating a seamless integrated finish. For existing pools, a 62mm core hole allows the niche to be retrofitted quickly and easily.

  The switch communicates wirelessly with the SplashMe Controller using LoRa technology

  Powered by a rechargeable battery with typical battery life of 12–36 months between charges, the Poolside Switch includes an inductive charging system and weatherproof construction designed specifically for poolside environments.
