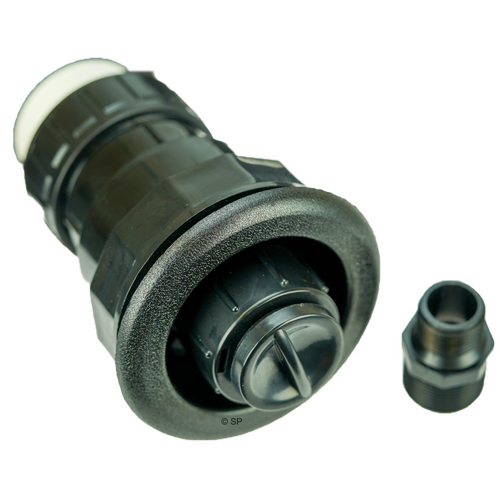

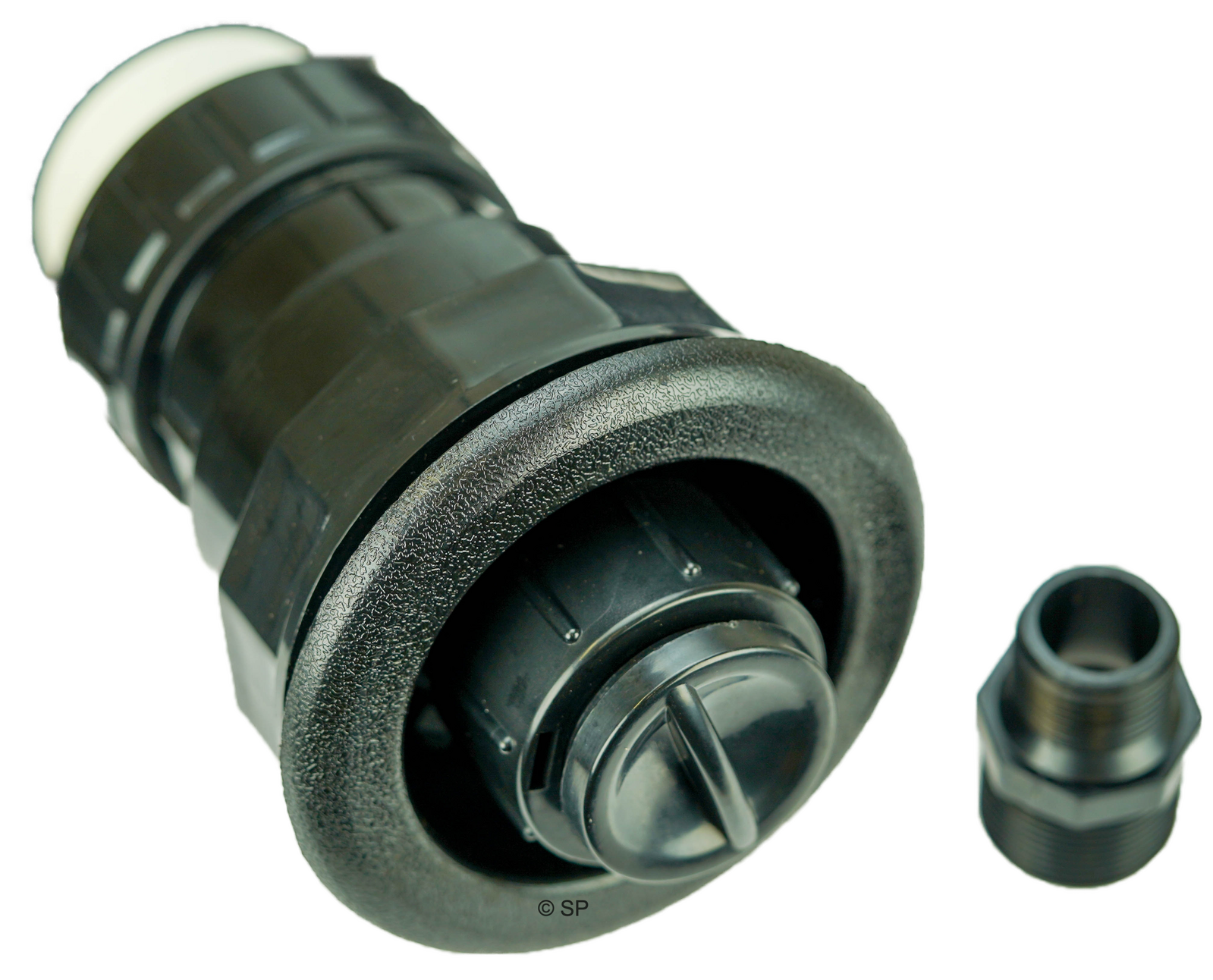

Sunrans Large Drain Valve

Sunrans large drain valve

110mm diameter
84mm diameter hole required
1.5"/40mm unionised socket
Overall depth under spa approx 140mm

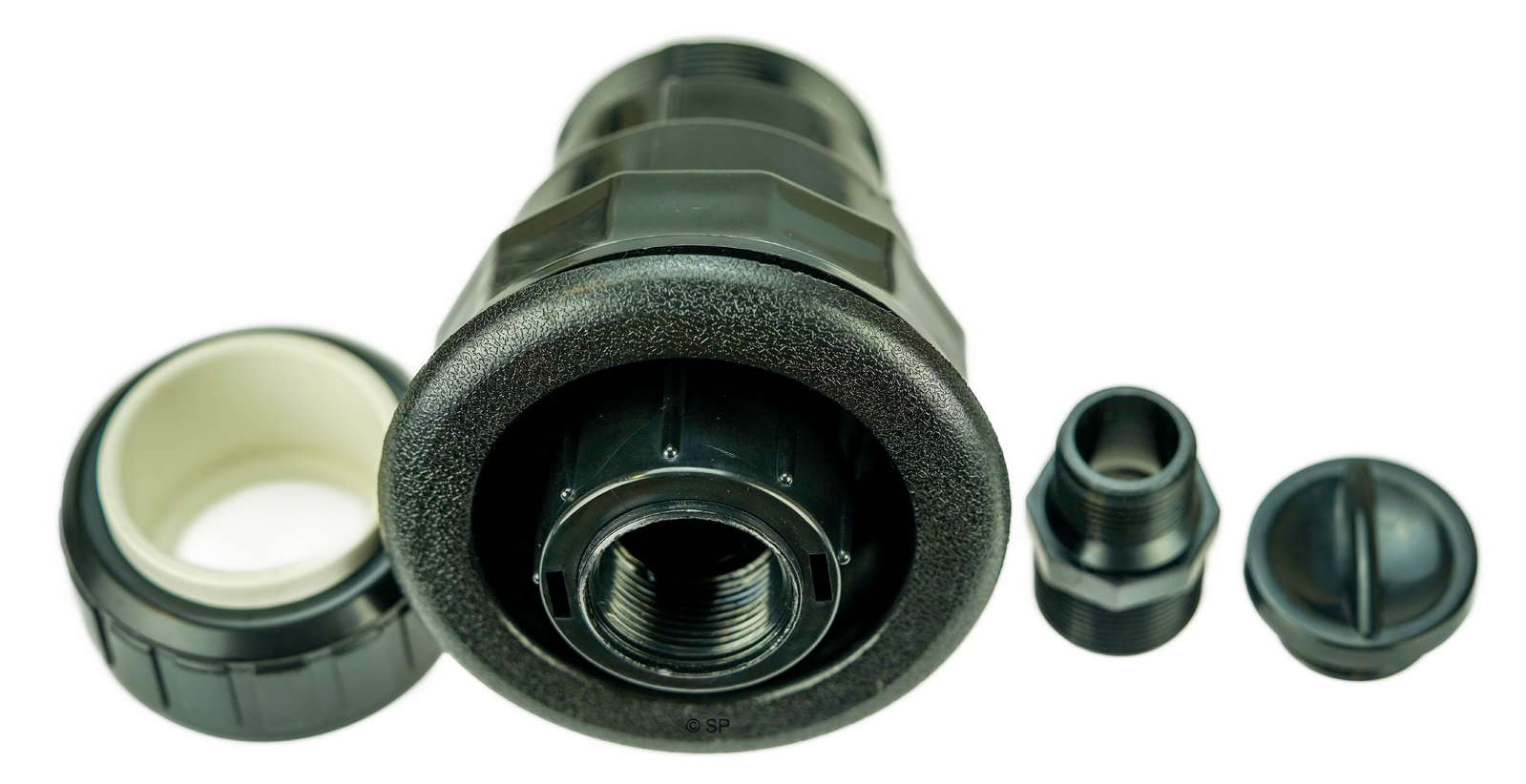

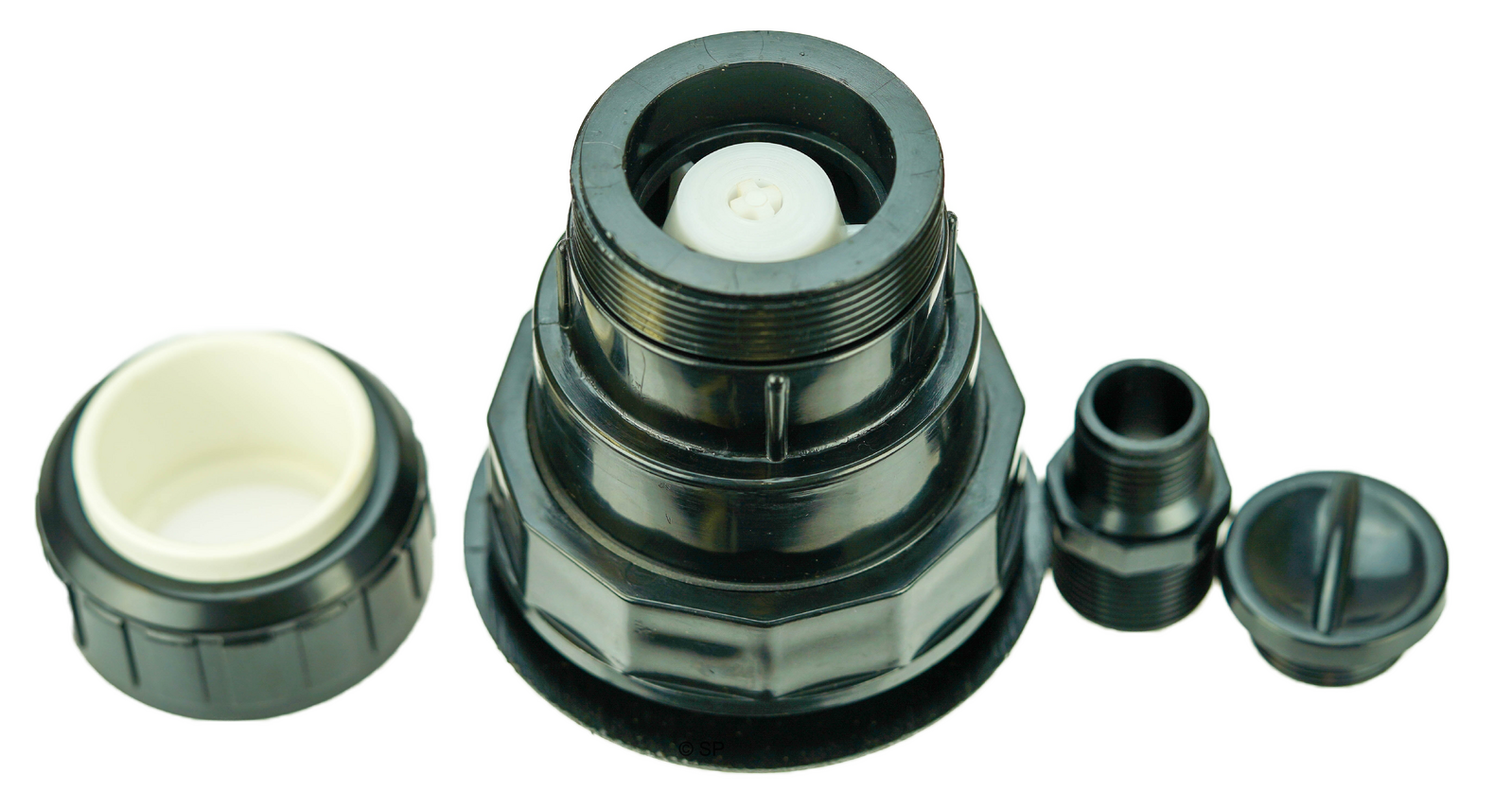

Supplied with male threaded cap and 3/4" NPT male thread adaptor

To operate -
push inner grip inward and twist to lock in place - this opens the valve for draining.
Resting position is with inner valve/cap in out position - this closes the inner valve.

Sunrans manufacture spas sold in Australia and New Zealand under numerous brand names including Spas Direct
