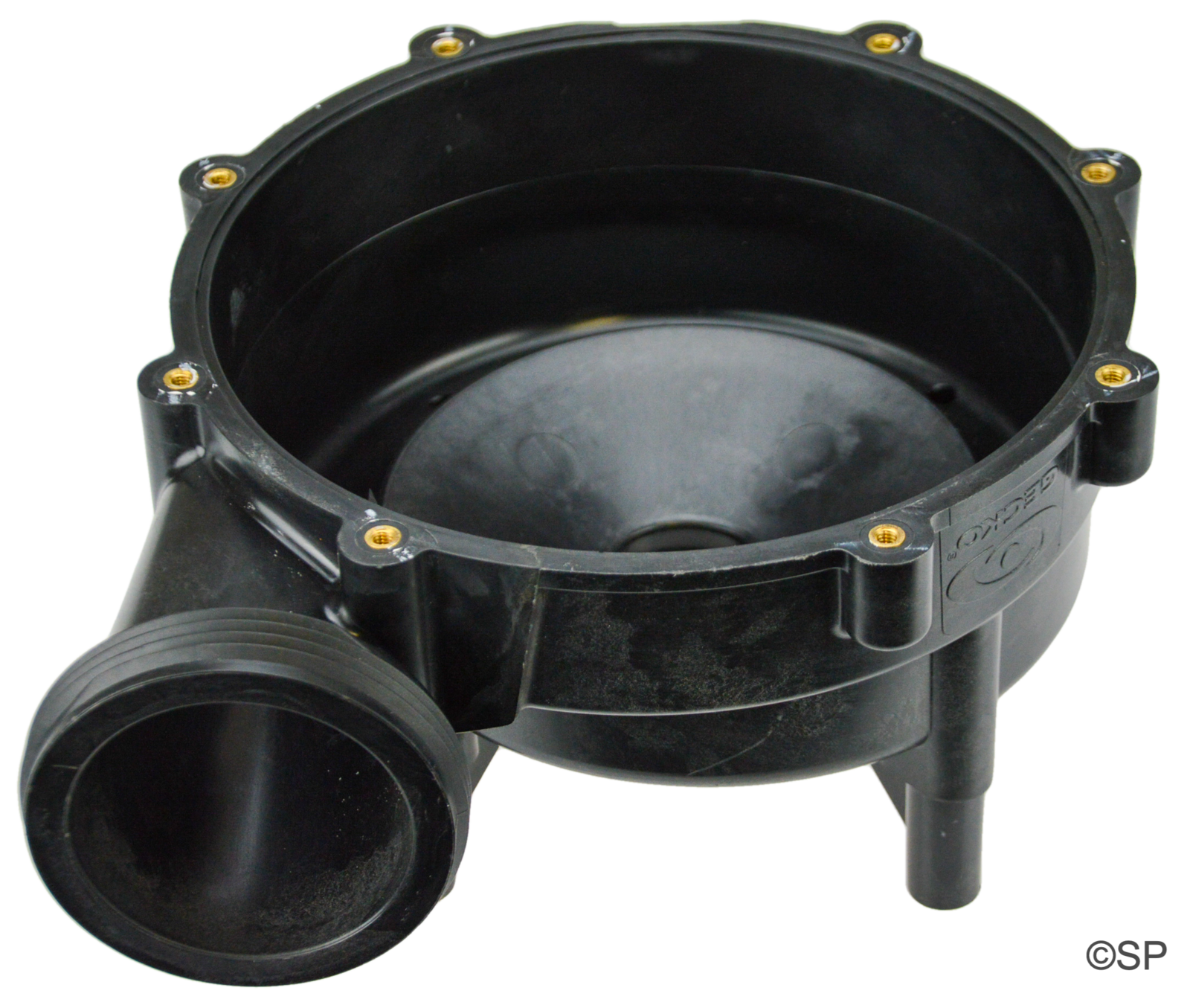

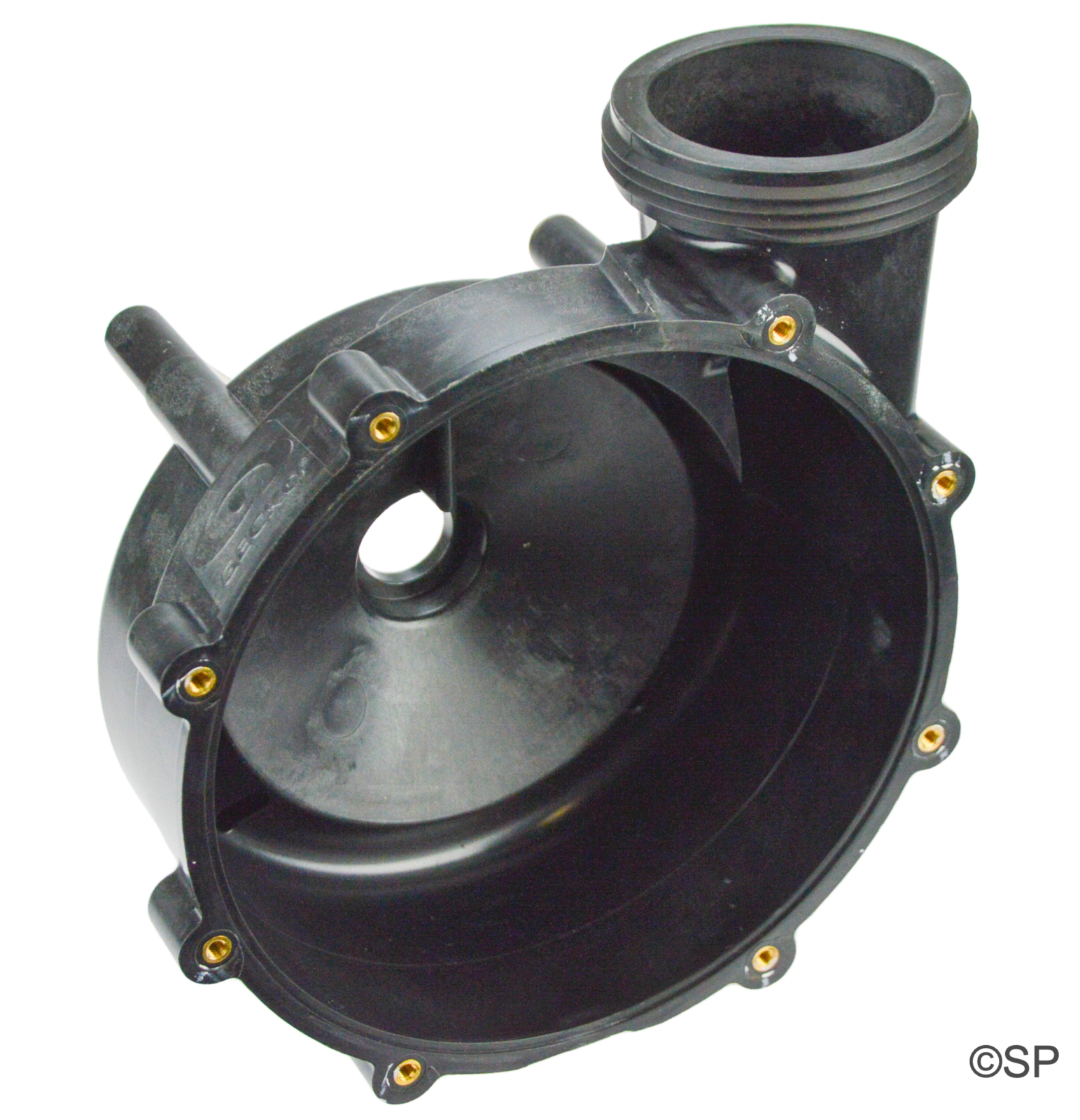

Gecko FM XP2 & XP2e Pump Body Volute - 56 Fr / 80 Frame 6.1" 2019+ version

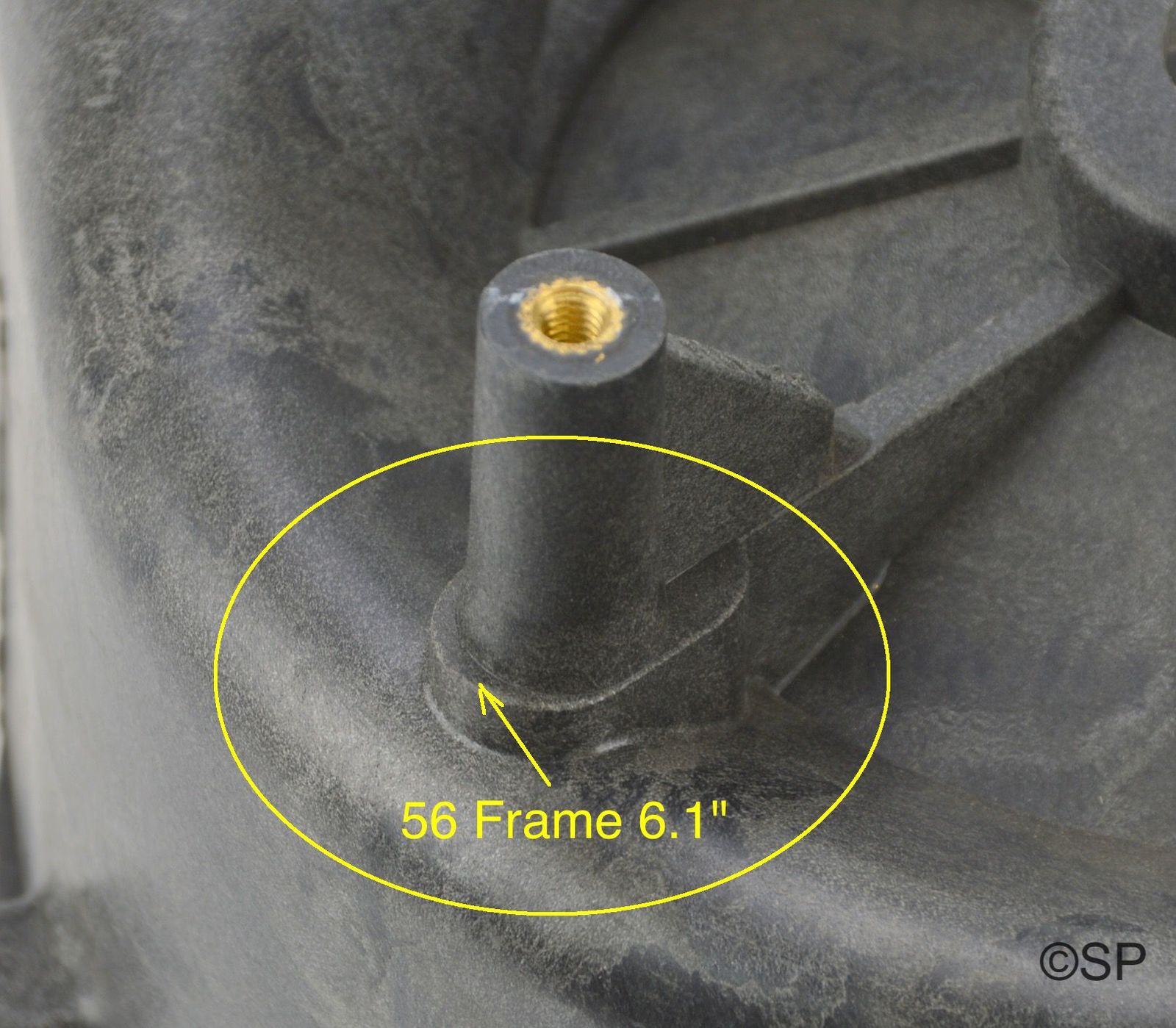

56FR, 6.1" Gecko XP2 & XP2e Volute  - 102mm between mounting bolts - centre to centre

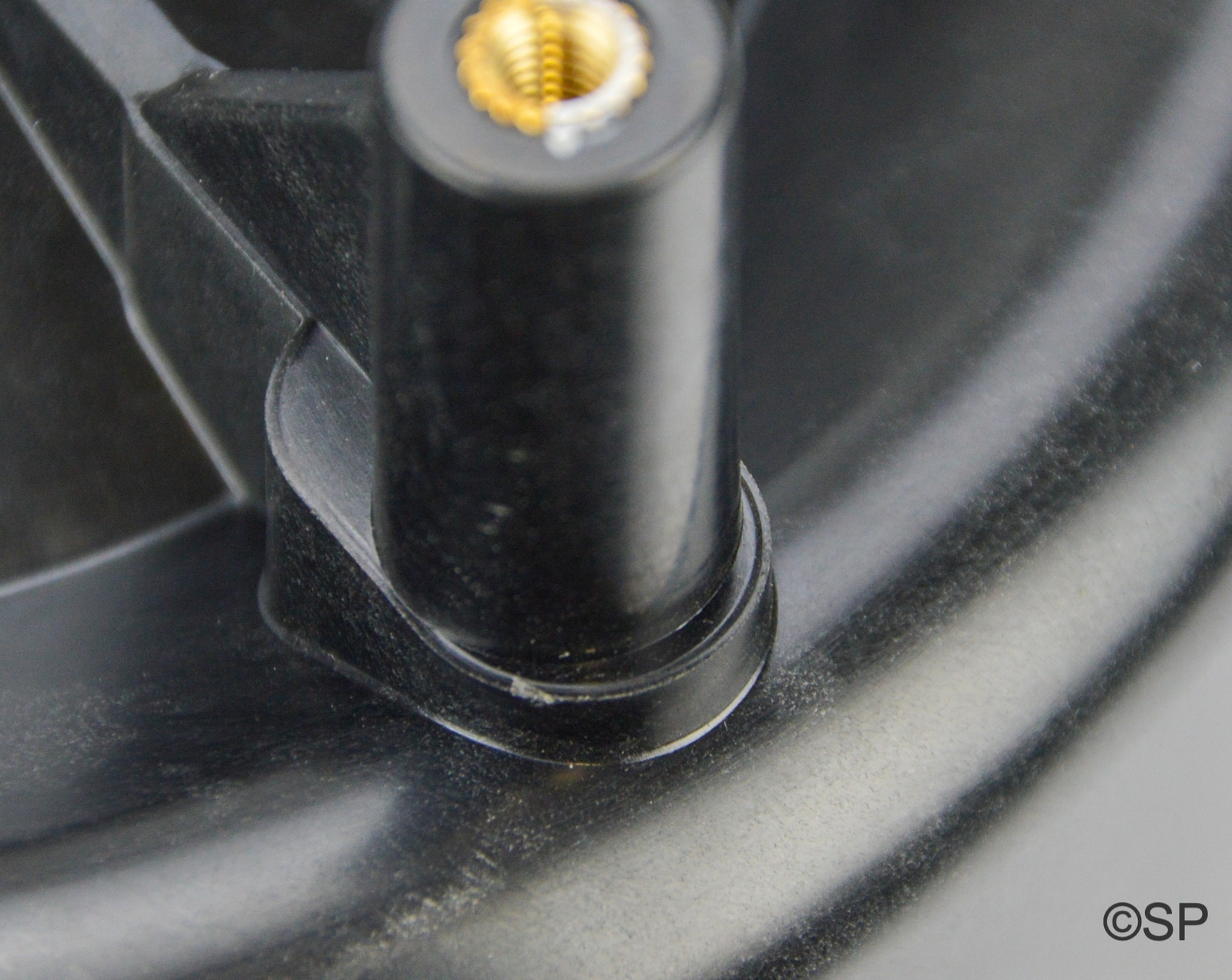

Volute (body) marked p/n.92772715 on one of the 45 degree foot supports

This Gecko labelled version of Aquaflo XP2 pump is approx 2019+ on some models, and is different in fit to the original.
Original pump suction cover faceplate will NOT fit this volute.

This version is identifiable by:

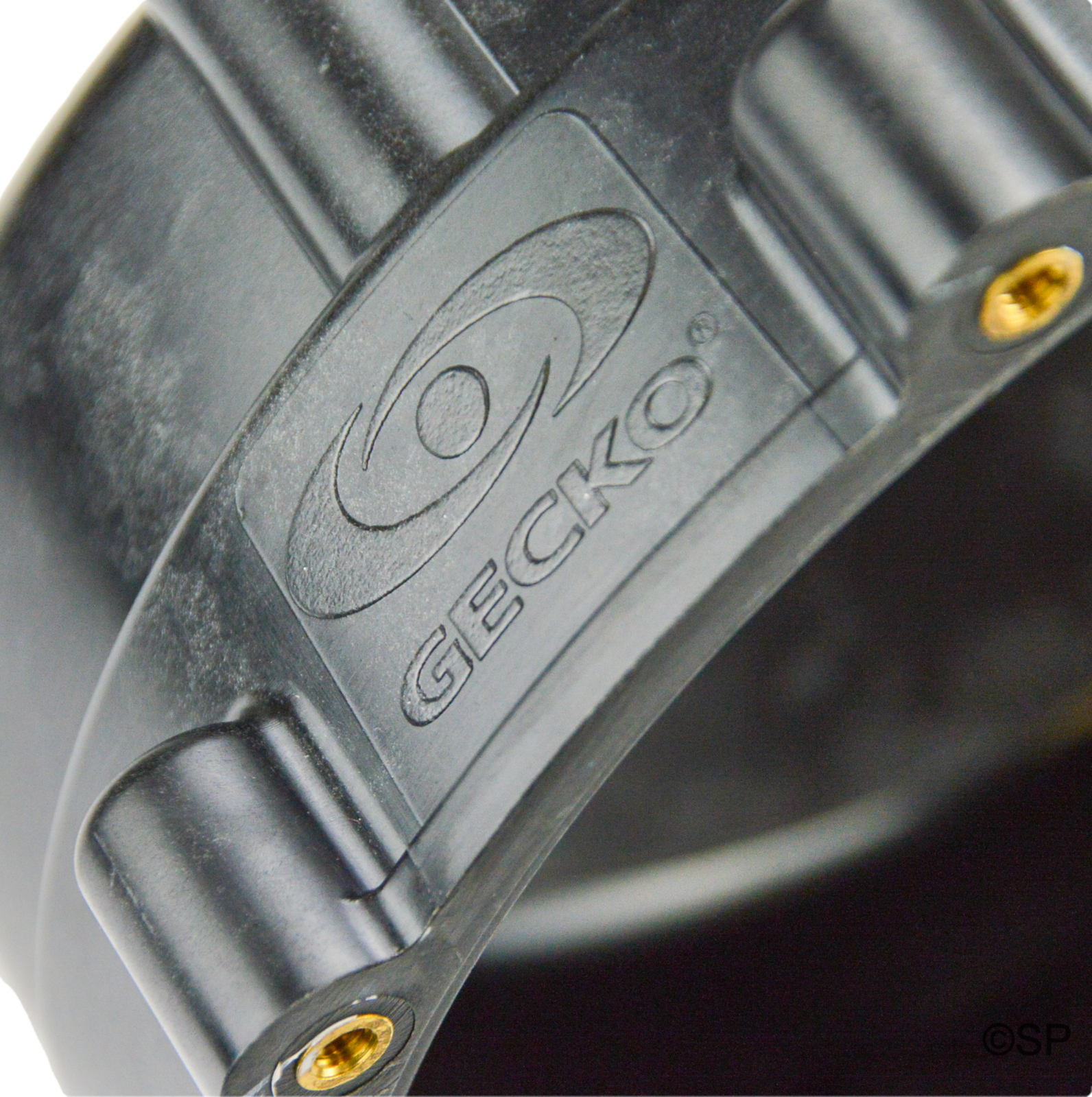

'Gecko' logo

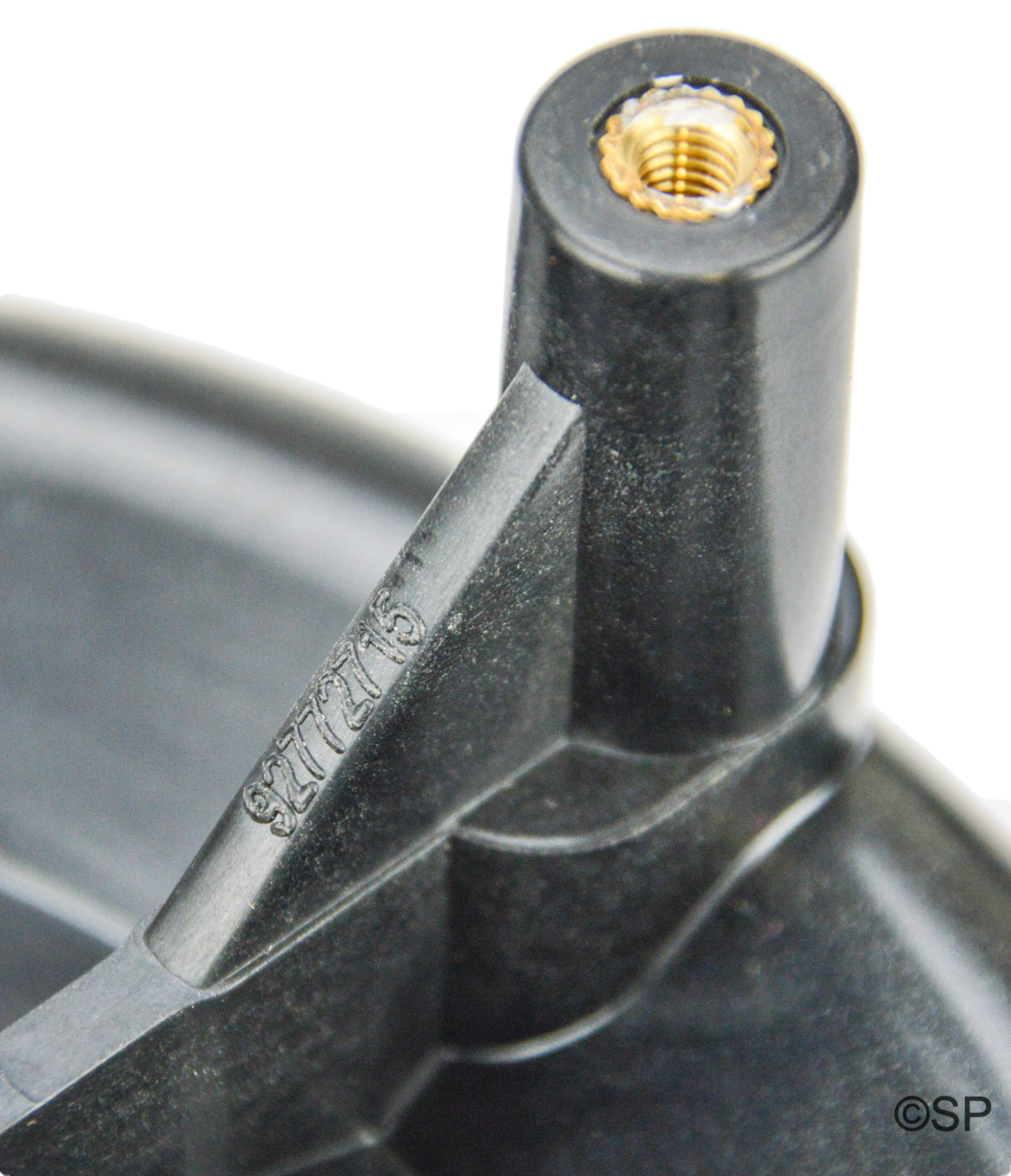

92772715 marking on the foot support

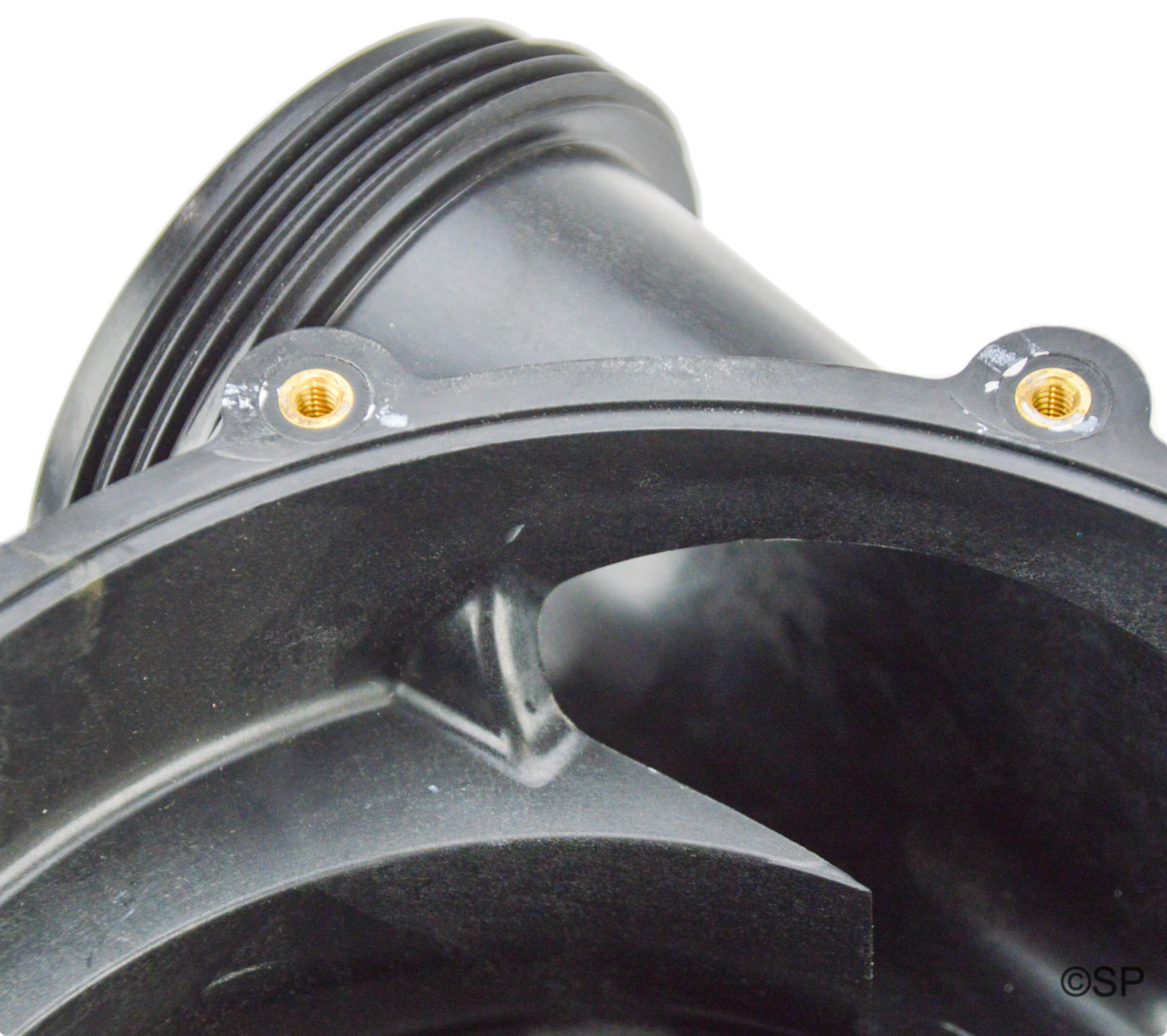

curved raised section at the pump discharge - it's this feature that prevents original design faceplates from fitting.
