spatex Auto Off Timer Switch with White electronic round Single Button touchpad - electronic - 1 x 10A output

White single button universal round touchpad with momentary switch button

Electronic airswitch alternative - single 10A output
10m cable

Can be used on above ground spas, installed in a dry location. (cannot be used in-ground or damp location)

Touchpad Dimensions:
52mm diameter top,
28mm diameter hole required.
10m long data cable included

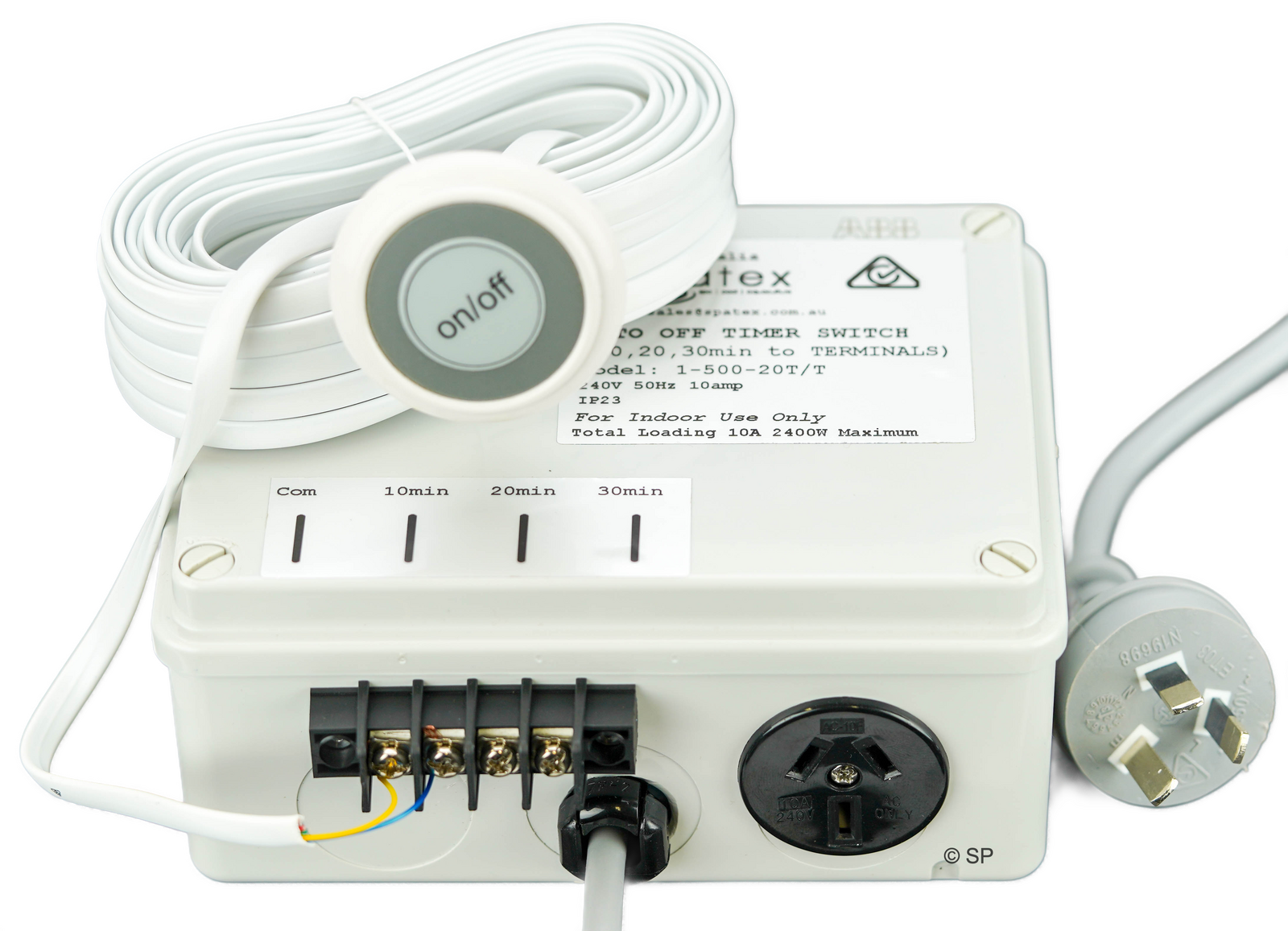

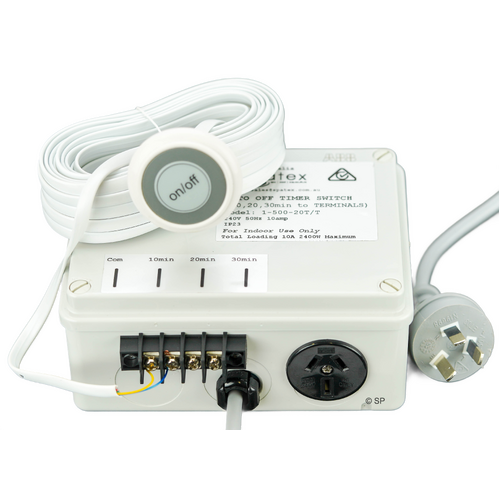

spatex electronic auto off timer control box.
Time off delay function - supplied set to 10 min - to change, select the corresponding jumper switch inside the unit ensuring no connection to power.

Wiring connections:
Com - Common / Yellow wire
10, 20 or 30 - Blue wire

Recommended time off delays:
Air blowers - 10 min
Water pumps 20 or 30 min
