Waterway Power Storm Straight Body Concrete Gunite Spa Jet Assembly Kit - THREADED

Waterway Plastics Power Storm Gunite Jet with straight body.
THREADED STYLE

200mm long pipe sections for most applications.
Concrete spa jet - air mixes from venturi at the jet nozzle, rather than back in the jet body.
Allows the use of the THREADED Power Storm jet internals

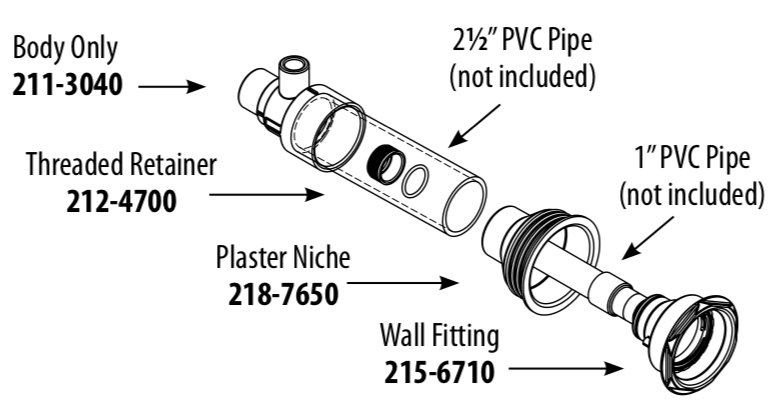

Includes:

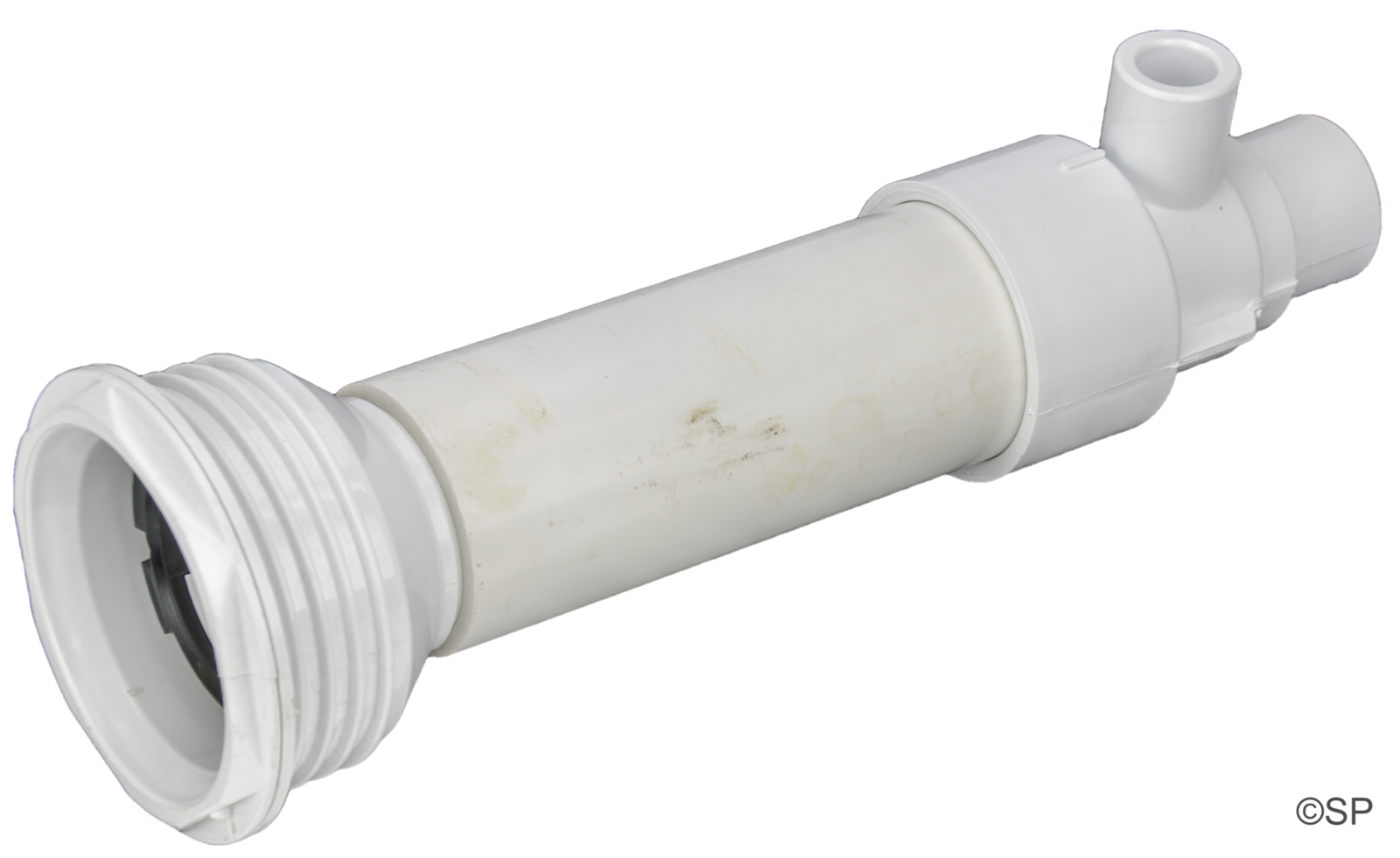

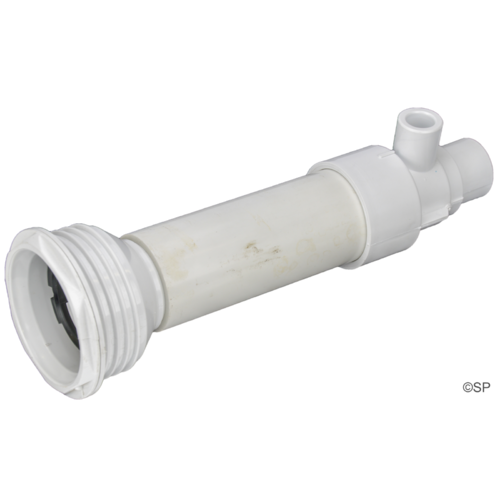

Jet - straight body assembly

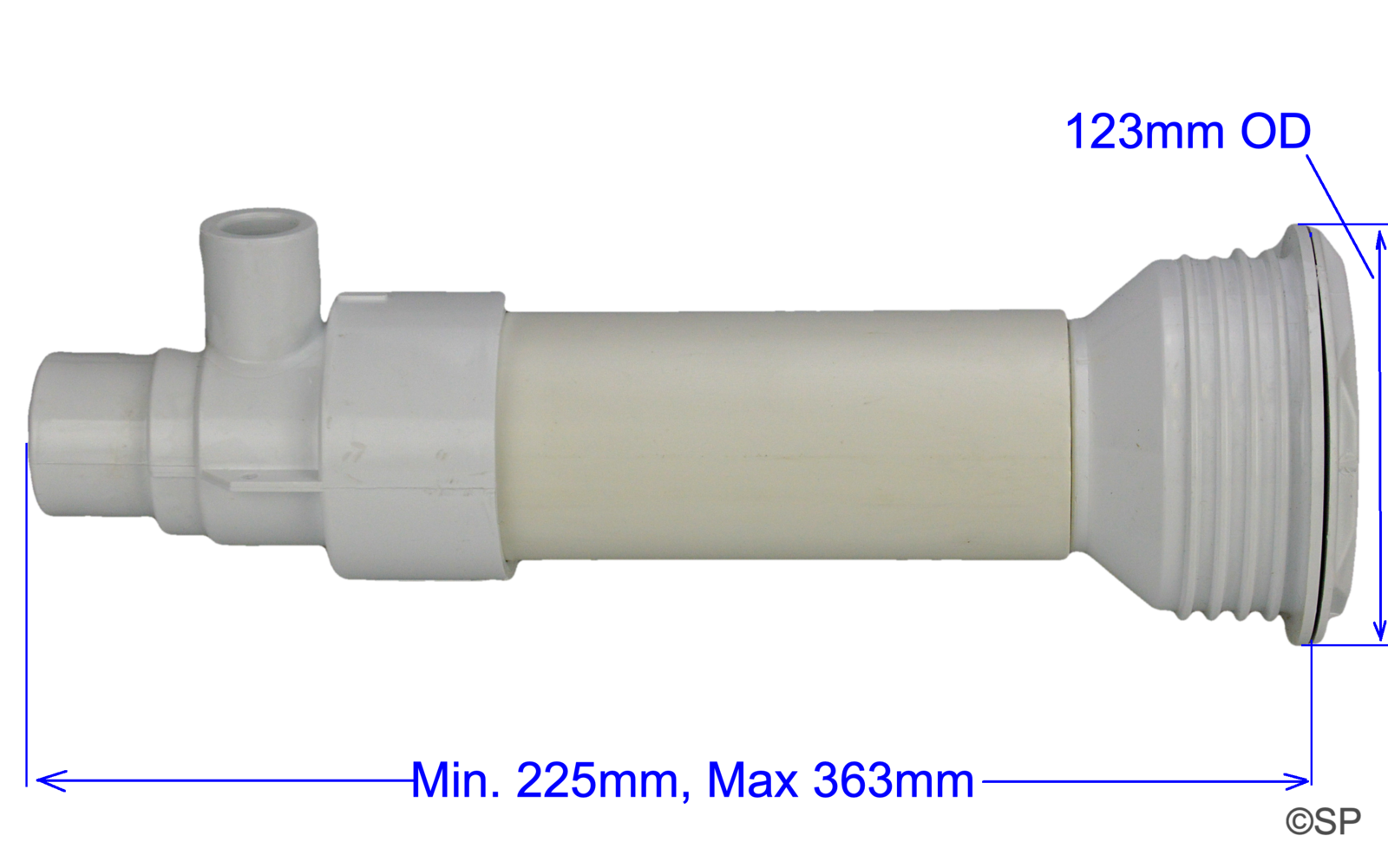

USA 2.5" x 8"/200mm pipe section
1" pipe section x 8" / 200mm

1"S / 1.5"Spg straight water x 1/2"S / 1"Spg air pipe connections Only requires jet internal for complete system.

This jet body design may be more installation friendly where jets are to be plumbed in close proximity to one another, where smaller air venturi pipes are desired, or single air venturi controls per jet, or where freedom of plumbing is to be maximised.
The plumbing to the jets can be directly into the rear of the jet, or from an elbow (45 or 90 ell), or a Tee as required.
Plumbing for water is either 1" or 1.5".
Air venturi plumbing is either 1/2" or 1".

May be shown with optional jet internal sold seperately (many other internals available - see Waterway Power Storm Jet internals listed under Jets - Waterway - Storm Series - Power Storm - Threaded style)

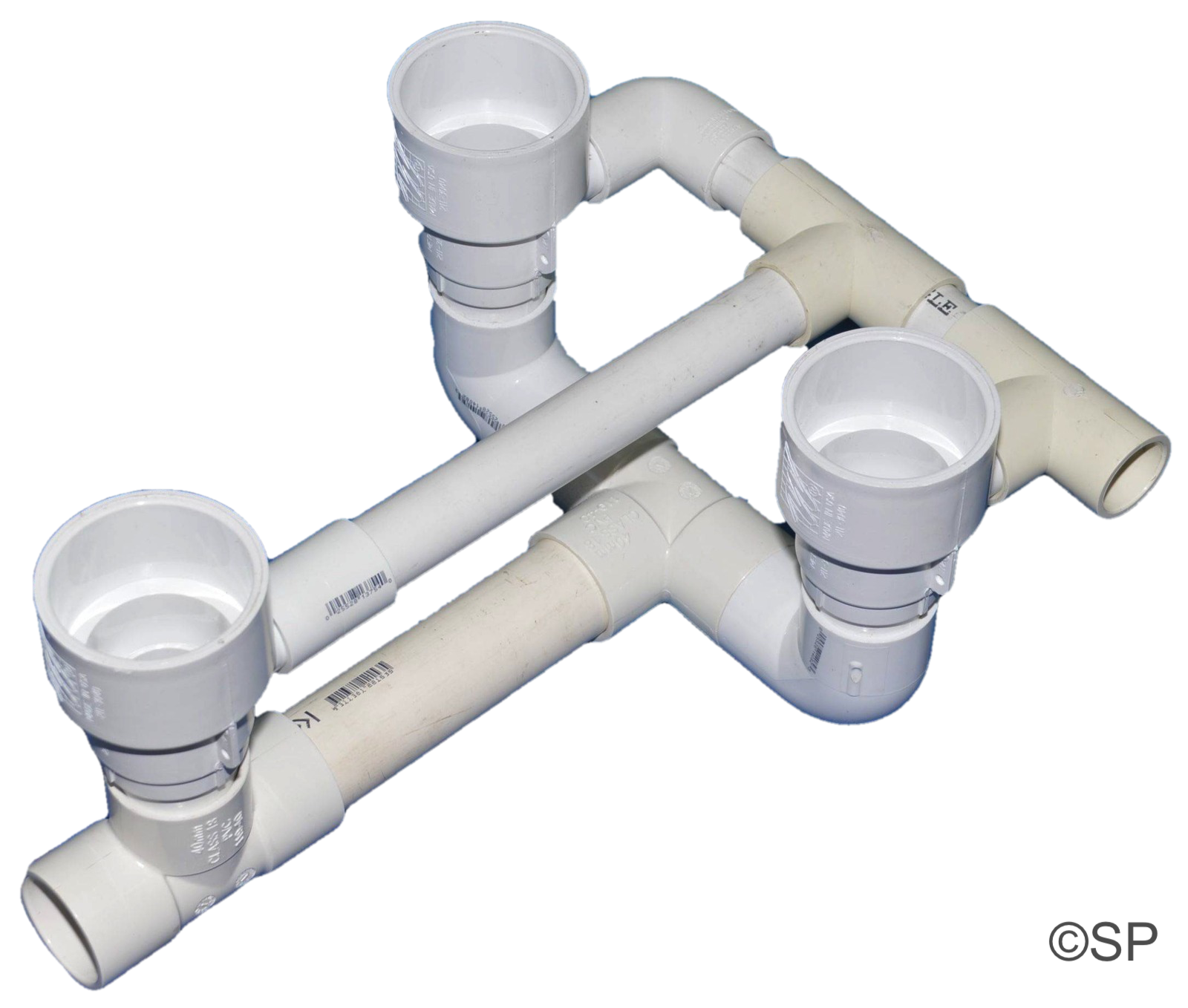

See images for options of what can be achieved with 'grouped' jets.

Does NOT suit older SNAP IN jet barrels
