Ethink KL8-3A Spa control system. 16 button Touchpad, 1.5kw heater

1 In Stock

SKU:
ETKL8-3AH220-15
Shipping:
Calculated at checkout

Available Options

login or register to view pricing

Login/Register

Product Description

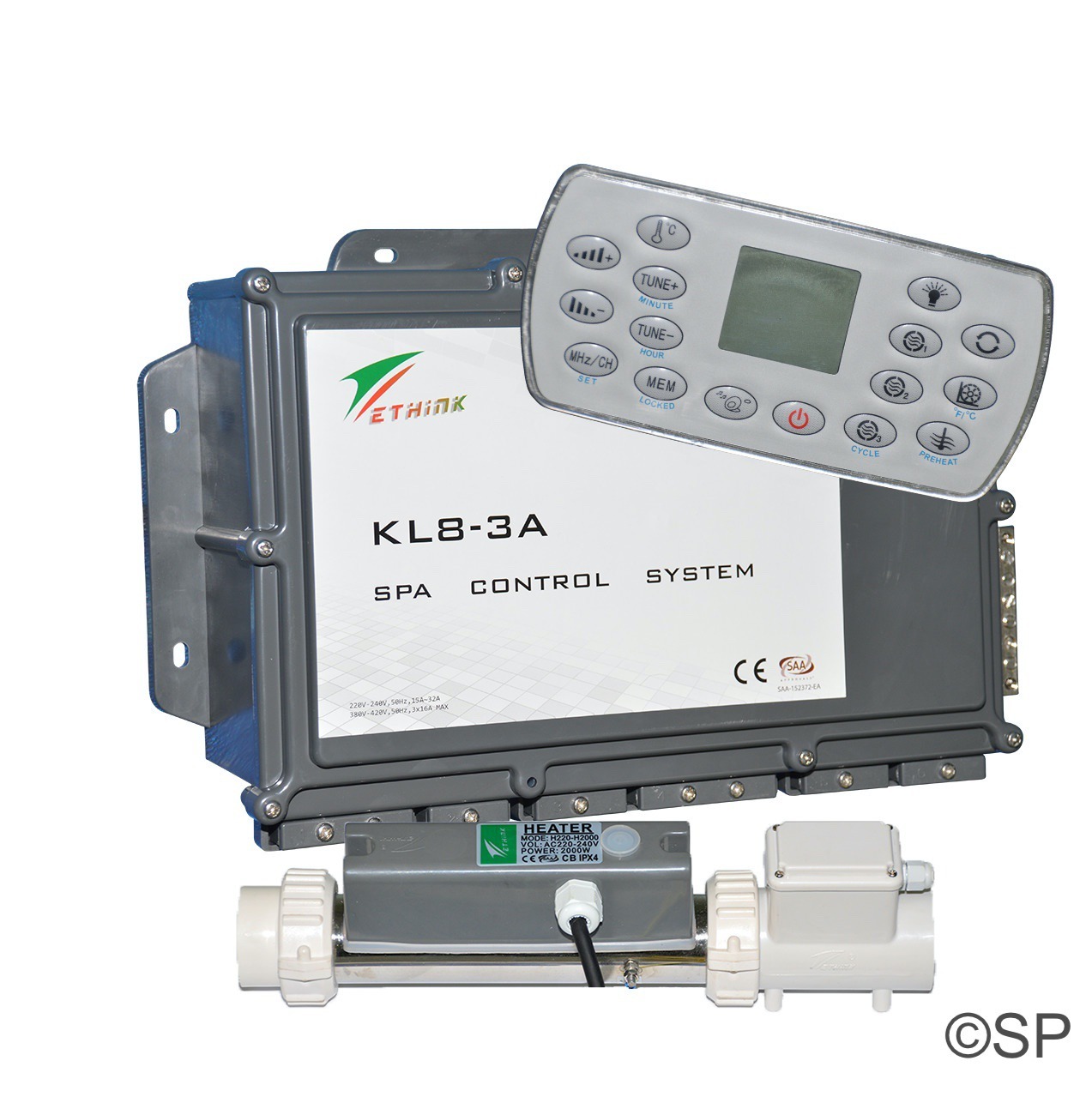

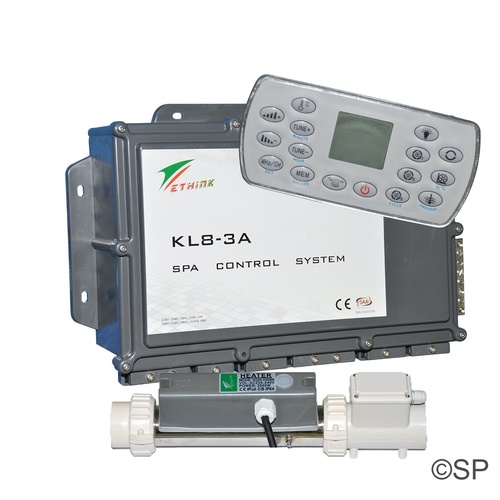

Ethink KL8-3A series spa control system with 16 button touchpad, 1.5kw heater
Comprises:
Ethink KL8-3A control box,

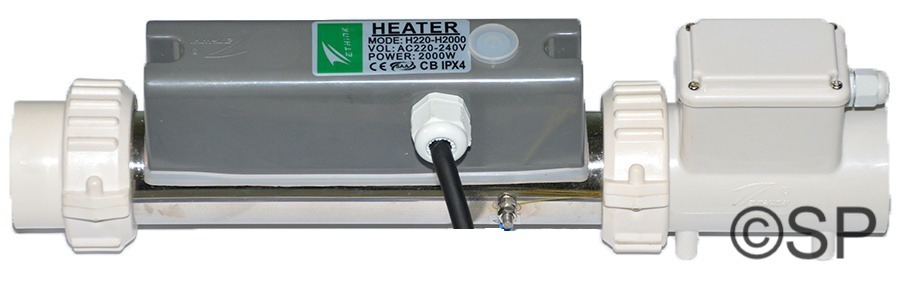

Ethink H220-15 1.5kw heater - 300mm long including unions,

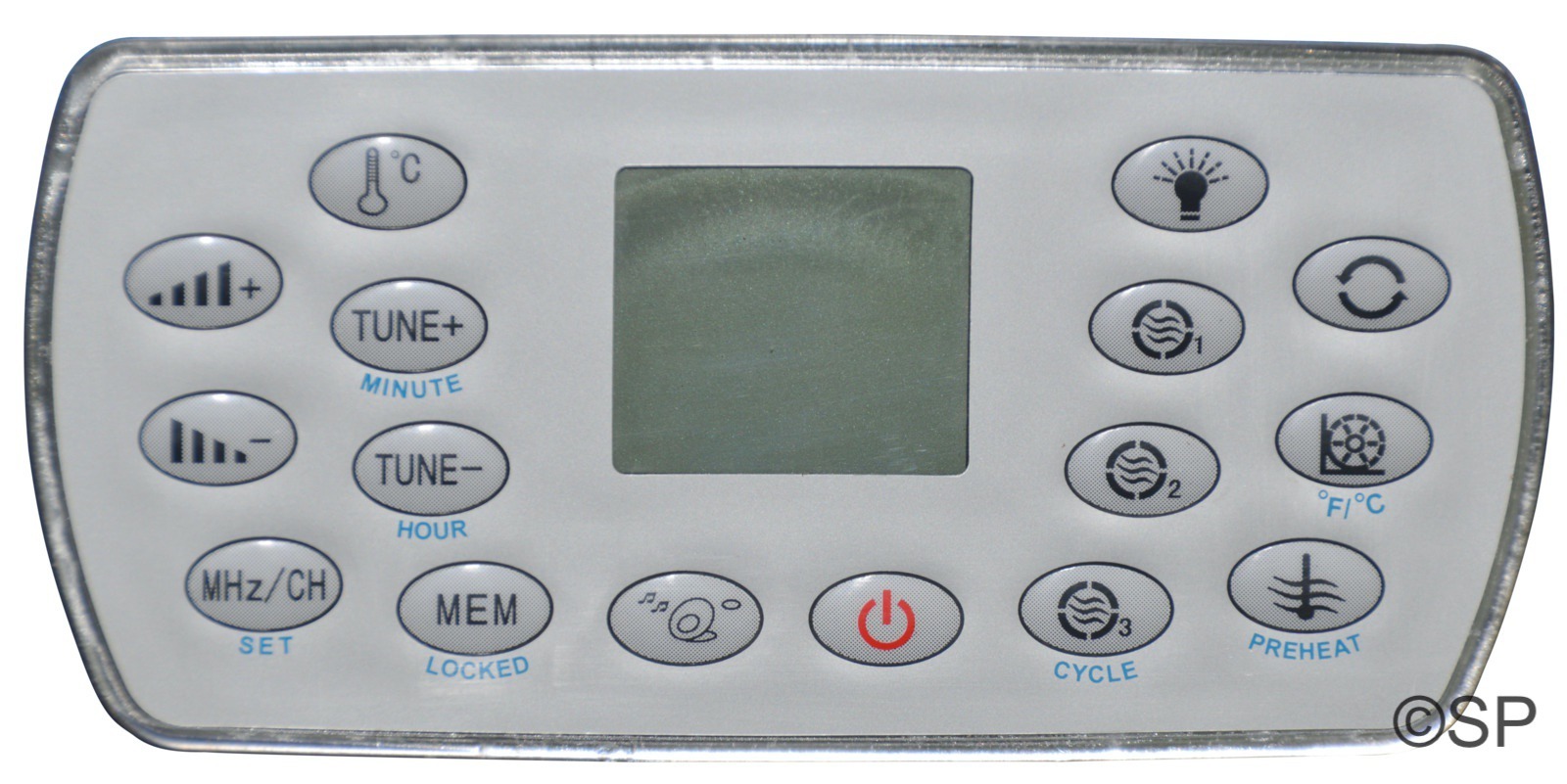

Ethink KL8-3A 16 button touchpad. Touchpad size - 210mm x 104mm
Best suited to replacing similar older model controllers.

Can be programmed and configured to run 1-3 jet pumps plus blower, ozone, light and circulation pump.
Outputs:
1: Circulation Pump
2: Pump 1: Single speed
3. Pump 2: single speed
4: Pump 3: Single speed
5. Blower: single speed
6. Ozone: Ethink 12v unit.
7. Light: any 12v AC incandescent lamp or LED lamp up to 12w/1A, either 2 wire 12v AC or 4 wire Ethink 12v DC
8. Auxillary output for optional stereo power supply connection.
9. Heater: H220 1.5kw only. 1.5" / 40mm plumbed. Does not suit larger performance 2hp+ pumps with 2" plumbing.
10. FM radio - analogue stations only. Digital radio not supported. Separate Aux RCA input wiring harness required for speaker connection if a CD / Audio player is connected.

Heaters must be mounted horizontally with the sensor union fitted to inlet side of heater. The heater can be positioned on the suction or discharge side of the pump (discharge side for low flow circ pumps)
AMP cables included for pumps, etc.

Power requirements:
32A circuit usually required with normal configurations, or 16A 3 phase. The heater and circ pump load shed, so for single jet pump and blower systems they may be able to run on 15A+ circuit depending on pump size.
Electrical circuit requirement needs to be determined by adding the current drawn by all outputs. It can only potentially be reduced by taking into account total load excluding the heater if maximum load shedding is selected. This usually only reduces the power required for spas with 1-2 jet pumps.

Equipment protection:
Ethink KL8-3A control box and heater must be weather and splash protected. Ensure they are installed in a well ventilated, dry location, preferably under the spa.

Warranty:
2 year return to base equipment warranty covers repair or replacement of any component that fails due to manufacturing defect within 2 years of sale to the consumer.

If you wish us to assist in ensuring the spa pack is correctly suited to your spa / system replacement, please complete the list of questions above.

If you choose not to complete the questions, we will still process your order, assuming you have correctly determined suitability to match your spa requirements.

If there is no option in the list for an output fitted to your spa, either the system configuration you are viewing doesn't support it, or it needs to be controlled in a different manner.
eg if there is no option for advising Pump 3 details, its likely the system in this configuration does not support a 3rd pump. The type of touchpad does dictate how many pumps are supported.
