Sundance Spas 2.7 kw Heater - Plastic / Titanium 2000+

4 In Stock

SKU:
sd6500-315
Brand:
Shipping:
Calculated at checkout

login or register to view pricing

Login/Register

Product Description

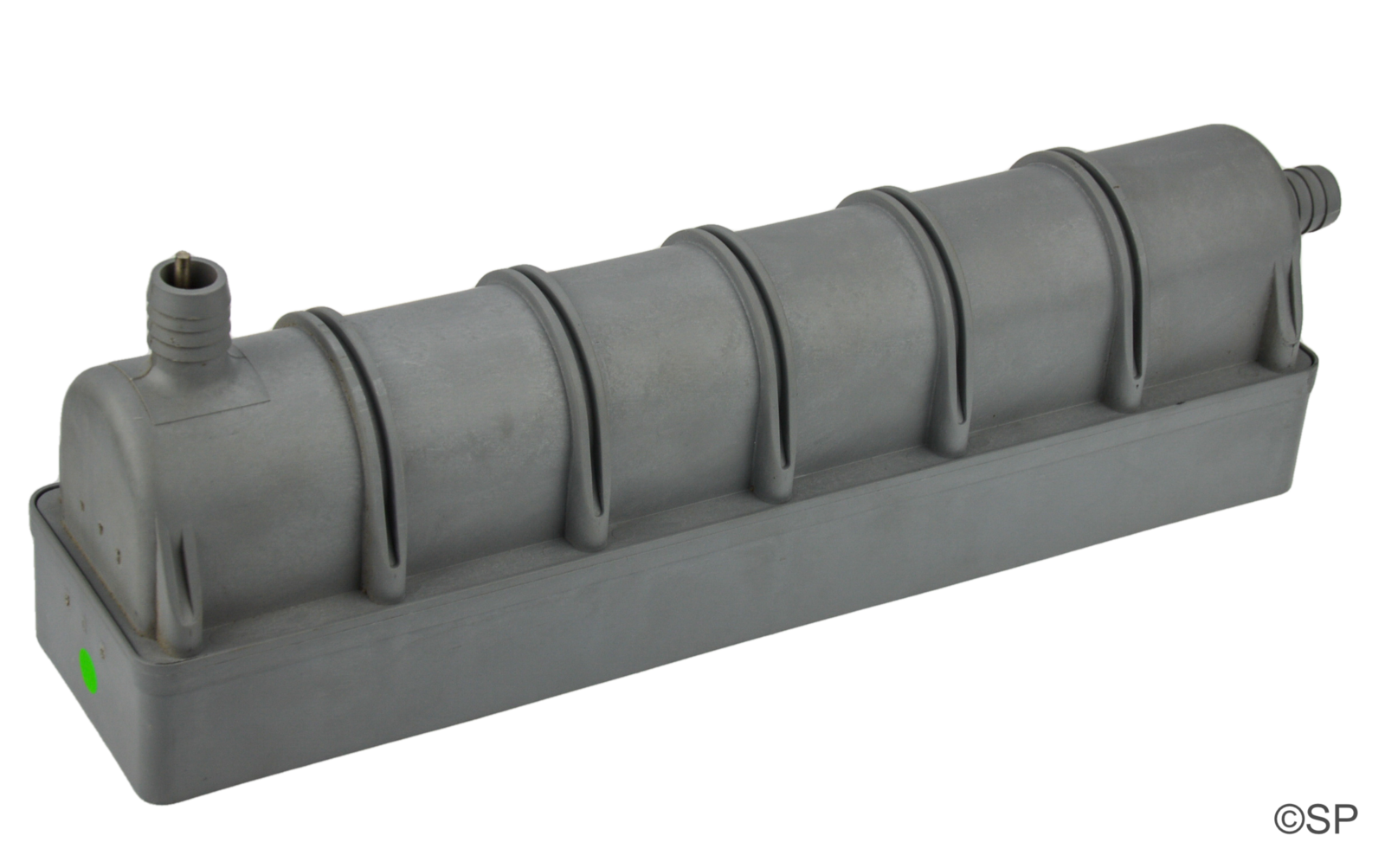

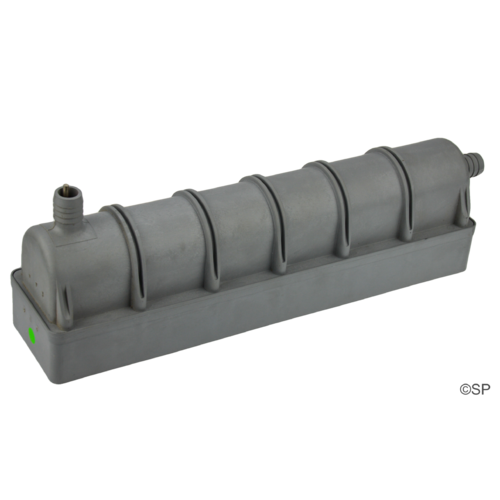

Sundance Spas 2.7kw plastic low flow heater assembly with titanium element.

Used on Export (European and Australian) Sundance spas since 2000

2.7kw, 240v, 11A
3/4" barbs, vertically mounted.

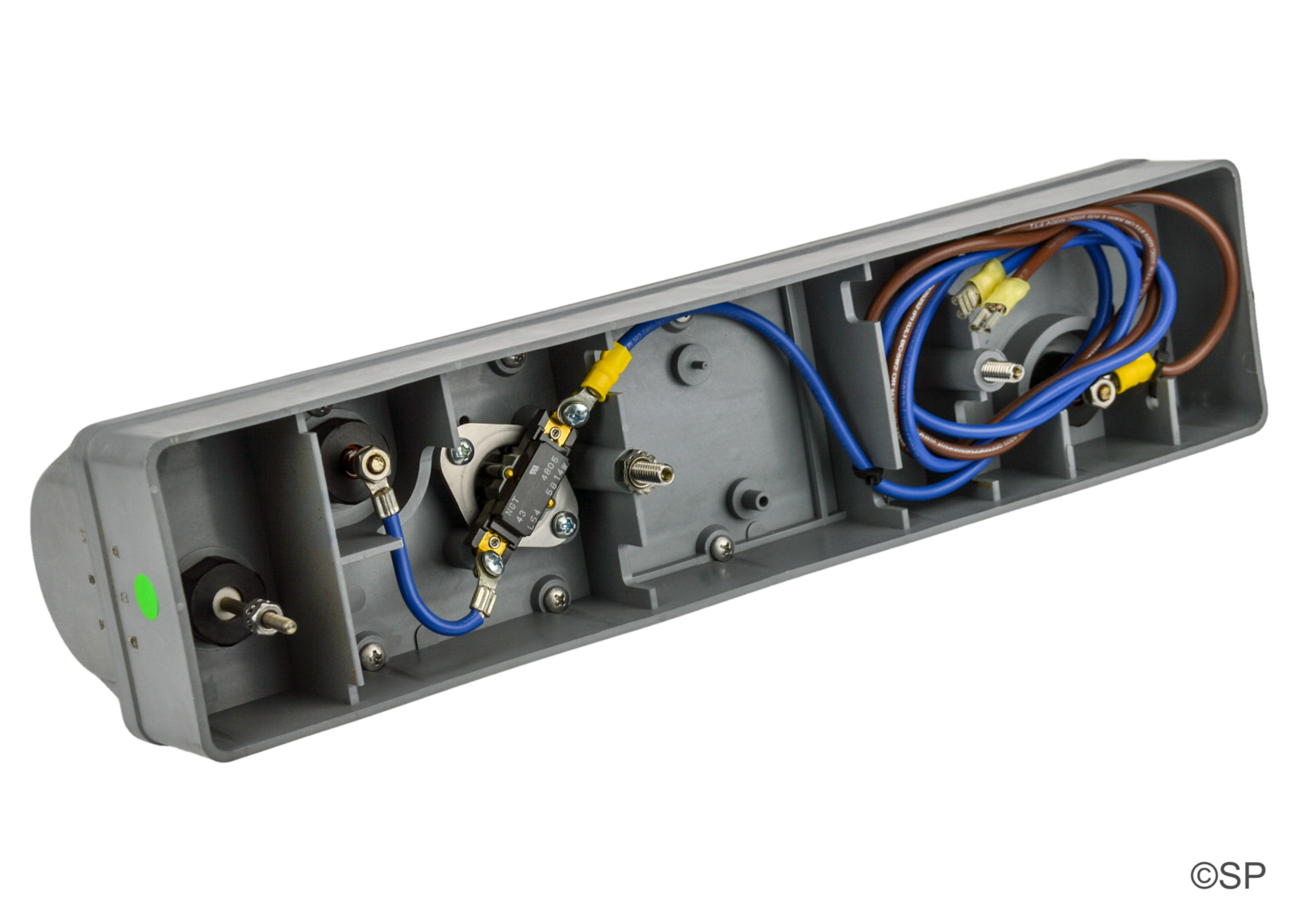

Includes high limit thermo-disc
Mounting bolts are 127mm apart.
380mm long x 88mm wide, 109mm high (excluding barbs)

Can be used to retrofit earlier SD6500-303 cylindrical vertical stainless steel heaters used from 1995-2000 - simply requires 3 holes drilled for mounting bolts and current collector rod.
See image with dimensions of mounting points.

NB When installing these heaters into spas manufactured prior to April 2007, you can normally no longer use the OEM Hi-Limit Sensor since it may be too large to fit into the new heaters sensor well. Do not force a hi-limit sensor into or drill out a sensor well. We recommend replacing both the Smart Heater and SD6600-168 Hi-Limit sensor which have an OD of 6mm
