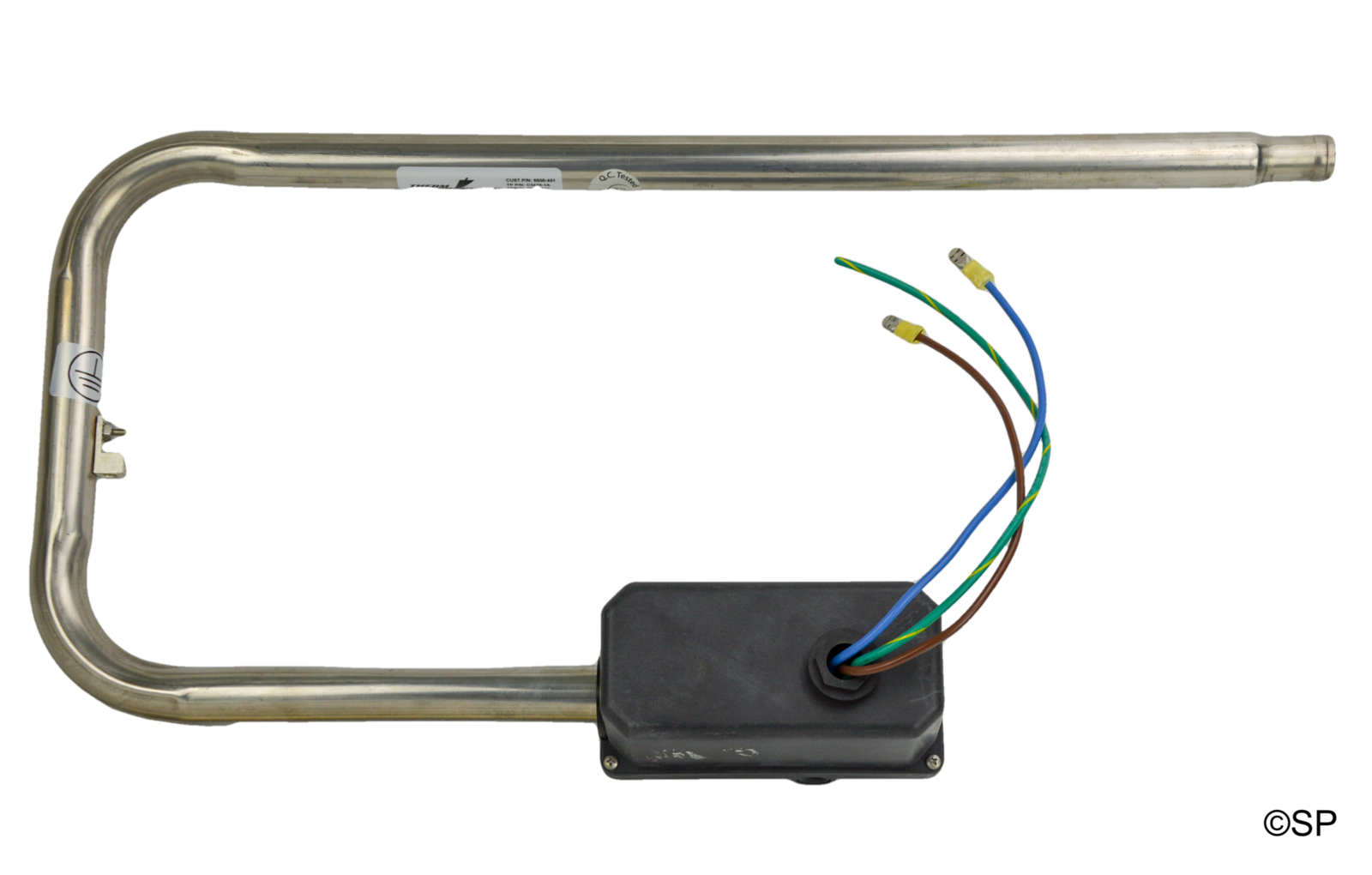

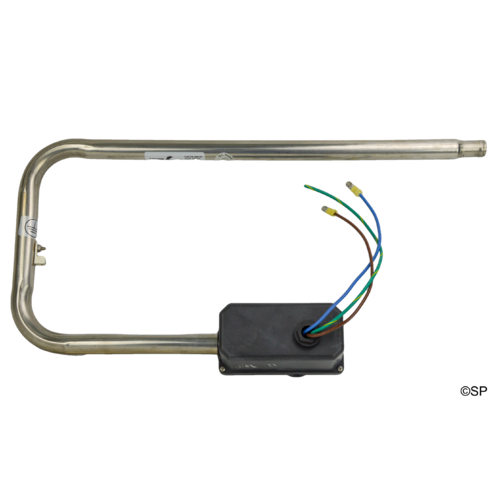

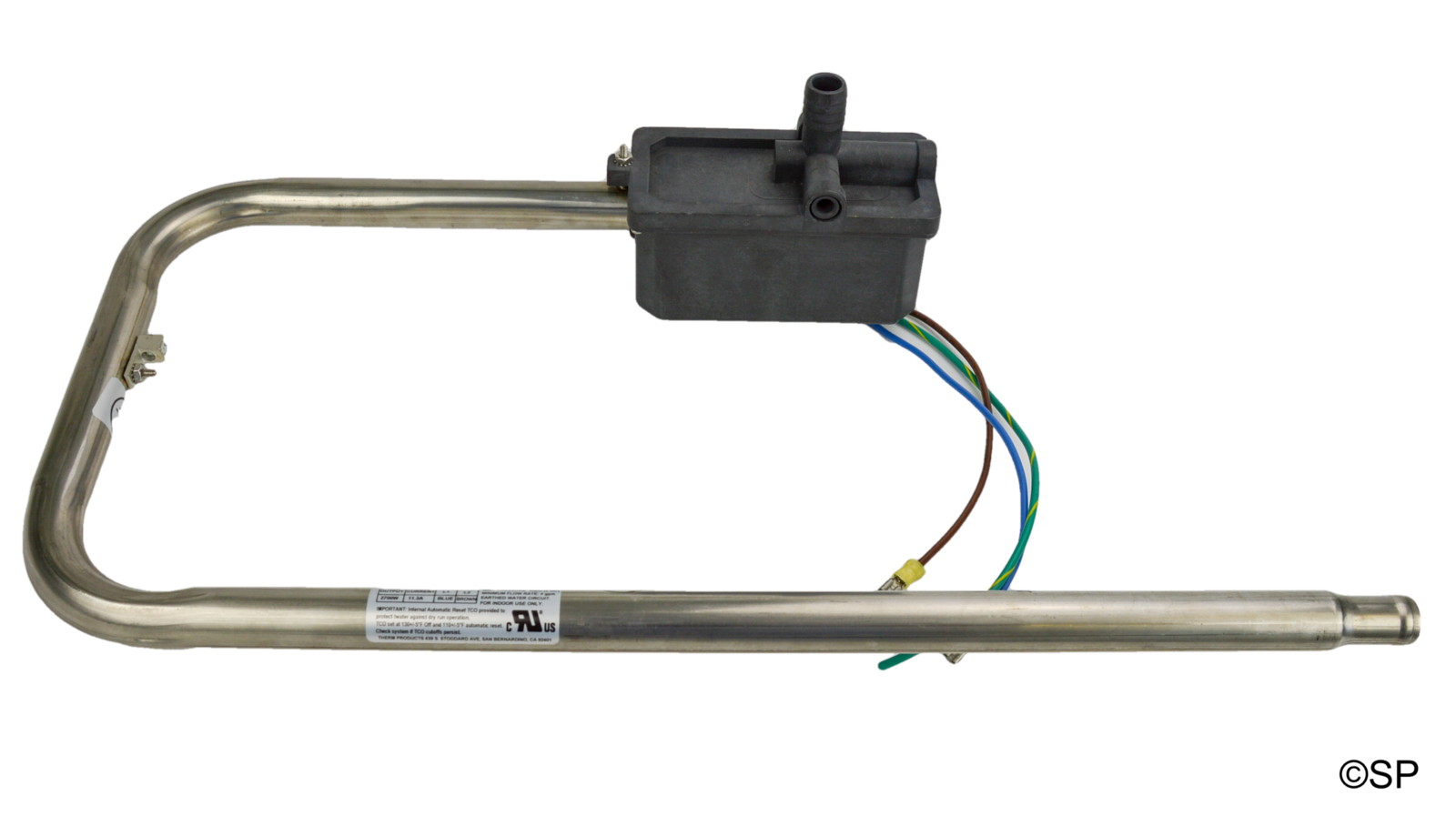

Universal 1" low flow spa heater replacement - 2.7kw

2.7kw circulation style universal heater replacement with threaded pressure switch tap (pressure switch sold seperately) to suit Gecko Electronics SSPA, MSPA-MP spa packs and many other circulation heater applications.

Can be used to replace similar discontinued heaters in varying shapes and kilowatt ratings from 2.0-5.2kw in most applications where the power supply permits.
Minimum power supply required will be at least 15A
(some 2.0kw units were fitted on 10A leads - this heater cannot be used without upgrading power supply to 15A+)

Includes:
Internal mechanical thermal hi limit
Pressure switch tap (fitted with threaded plug)

Can be used with in-line flow switch or a pressure switch can be threaded in.

3/4" barbed connections for clear tubing

Can be used on LA Spas, Heritage Spas, Lanark Spas, Southwest Spas, Sierra Spas, Sundance Spas, Jacuzzi Hot Tubs and many others

Can be used to replace Gecko MSPA-MP heaters if a remote hi-limit is fitted/soldered to pcb if existing high-limit is in a foam poron strap.

C3478-1A, 6500-401, SEH-2700-NHC, L6697
2.7kw, 230v

Supplied with cable gland.
Original heater power supply cord will need to be re-used / wired to heater terminal box.
